Products

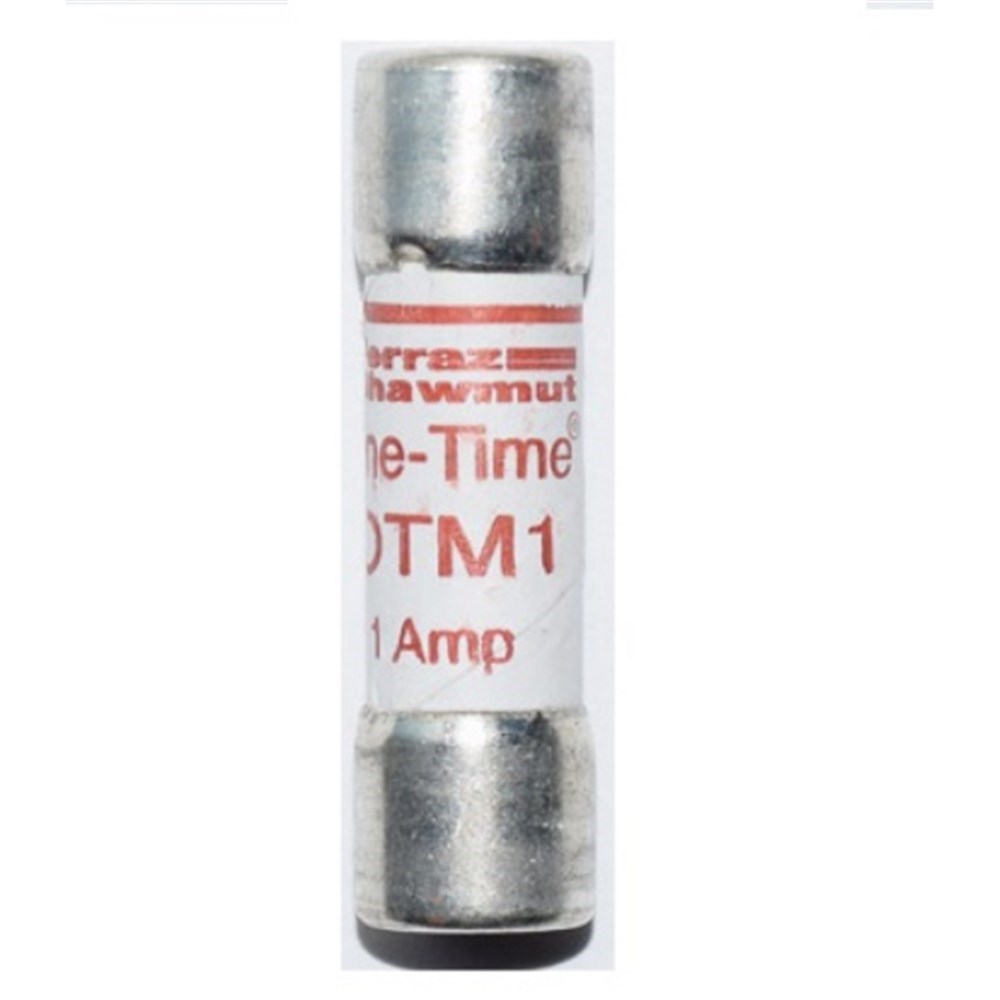

Mersen OTM1 Fast-Acting Midget Fuse 1A 250VAC 0.41 in Dia 1.5 in L 10kA Interrupt Ferrule

Product Code: OTM1

  • Rated for 250 VAC, 1 A current
  • Compact size: 1.5 in length
  • Clip mounting type for easy installation
  • High interrupt rating of 10 kA
  • Tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Midget Fast - Acting Fuse
Brand
Mersen
Series
OTM Midget Fast-Acting
Application
Supplementary / general-purpose circuit protection

Electrical

Utilization Category
Fast acting
Breaking Capacity
10 kA
Rated Current (In)
0.041667
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
250 V AC
Speed Class
Fast acting

Mechanical

Body Style
Cylindrical / ferrule
Indicators
without indicator
Mounting
Clip-in fuse holder
Size Code
10 x 38
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
38 mm
Weight
0.0054 kg
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-14; CSA C22.2 No. 248.14

Documents

IPD Product Catalogue V17
