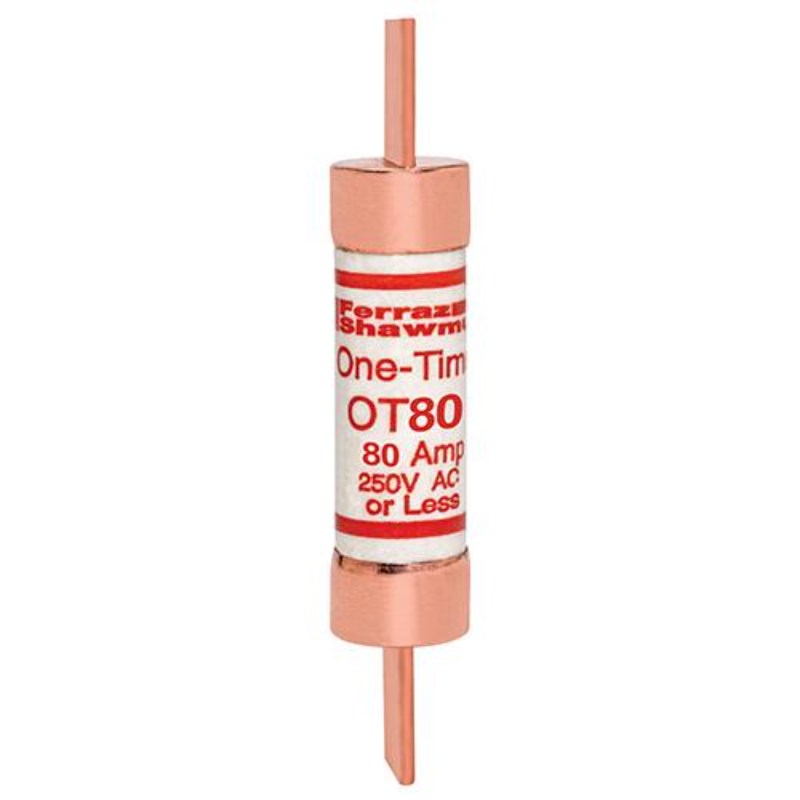

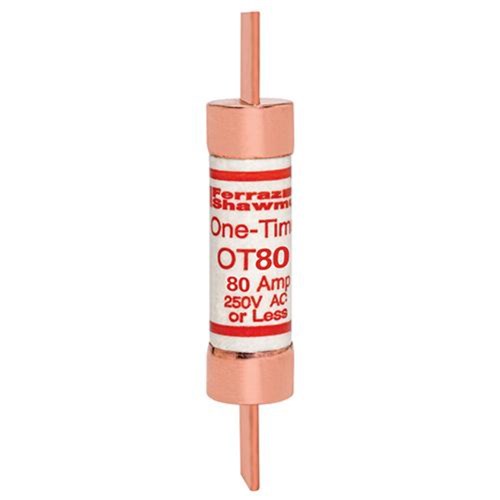

Mersen OT80 Fast-Acting General Purpose Fuse 80A 250VAC/DC Class K5 1.06 in Dia x 5.88 in L Blade Terminal

Product Code: OT80

  • 80 A rated current for efficient performance
  • Supports 250 VAC/VDC voltage applications
  • High breaking capacity of 50 kA
  • Clip mounting for easy installation
  • Durable poly tube body material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Class K5 Fast - Acting Fuse
Brand
Mersen
Series
OT
Application
General purpose branch-circuit and equipment protection

Electrical

Utilization Category
Class K5
Breaking Capacity
50kA
Rated Current (In)
80A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
250V AC/DC
Speed Class
Fast acting

Mechanical

Body Style
Blade type
Indicators
without indicator
Mounting
Blade / bolted mounting
Size Code
Class K5 blade
Connection/Termination
Blade terminals

Safety, Standards & Compliance

Standards and Approvals
UL 248-9; CSA C22.2 No. 248.9

Documents

IPD Product Catalogue V17
