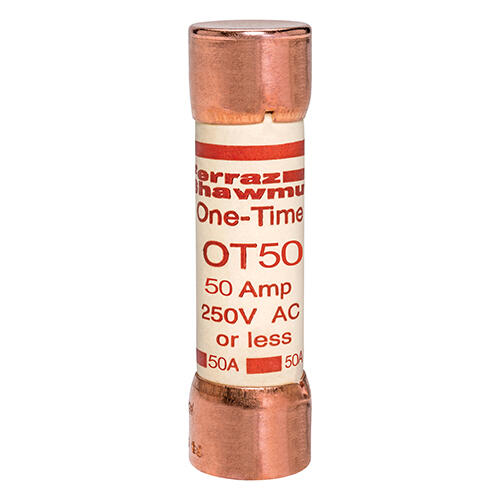

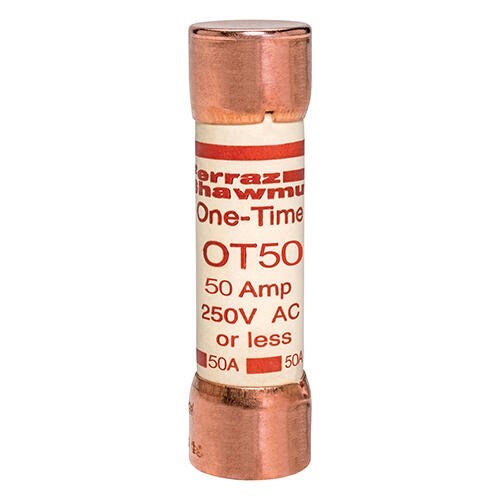

Mersen OT50 Fast-Acting General Purpose Fuse 50A 250VAC/DC Class K5 0.81 in Dia x 3 in L Ferrule Terminal

Product Code: OT50

  • Rated 50A for robust performance
  • Supports 250 VAC/VDC applications
  • Compact size: 0.81 in Dia x 3 in L
  • High breaking capacity of 50 kA
  • Easy clip mounting system
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Class K5 Fast - Acting Fuse
Brand
Mersen
Series
OT
Application
General purpose branch-circuit and equipment protection

Electrical

Utilization Category
Class K5
Breaking Capacity
50kA
Rated Current (In)
50A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
250V AC/DC
Speed Class
Fast acting

Mechanical

Body Style
Cylindrical / ferrule
Indicators
without indicator
Mounting
Clip-in fuse holder
Size Code
21 x 76
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
76mm
Width
Ø 21mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-9; CSA C22.2 No. 248.9
