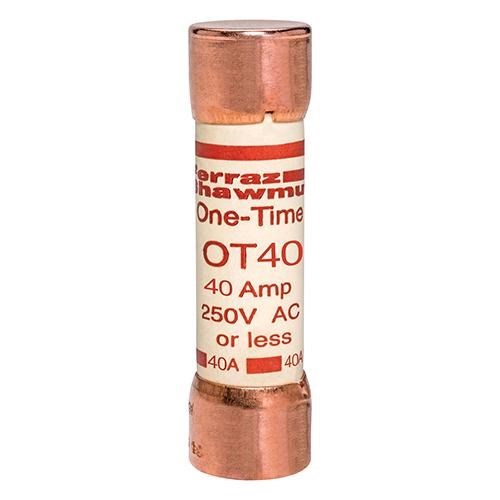

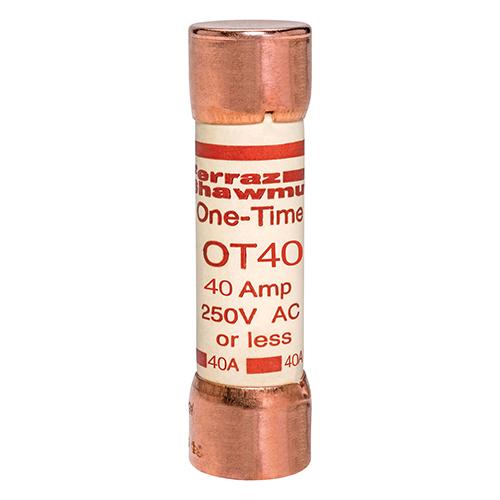

Mersen OT40 Fast-Acting General Purpose Fuse 40A 250VAC/DC Class K5 0.81 in Dia x 3 in L Ferrule Terminal

Product Code: OT40

  • 40 A rated current for reliable performance
  • Supports 250 VAC/VDC voltage
  • High breaking capacity of 50 kA
  • Compact size: 0.81 in dia x 3 in length
  • Clip mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
OT
Application
Feeders, Branch circuit, Residential and small commercial installations

Electrical

Breaking Capacity
50kA
Rated Current (In)
40A
Rated Voltage (Ur)
250V AC
Speed Class
Fast-acting

Mechanical

Body Style
Cylindrical
Material
Fiber body, metal caps
Connection/Termination
Blade

Dimensions & Physical Data

Length
76mm
Width
Ø 21mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-9, UL, CSA, RoHS

Documents

IPD Product Catalogue V17
