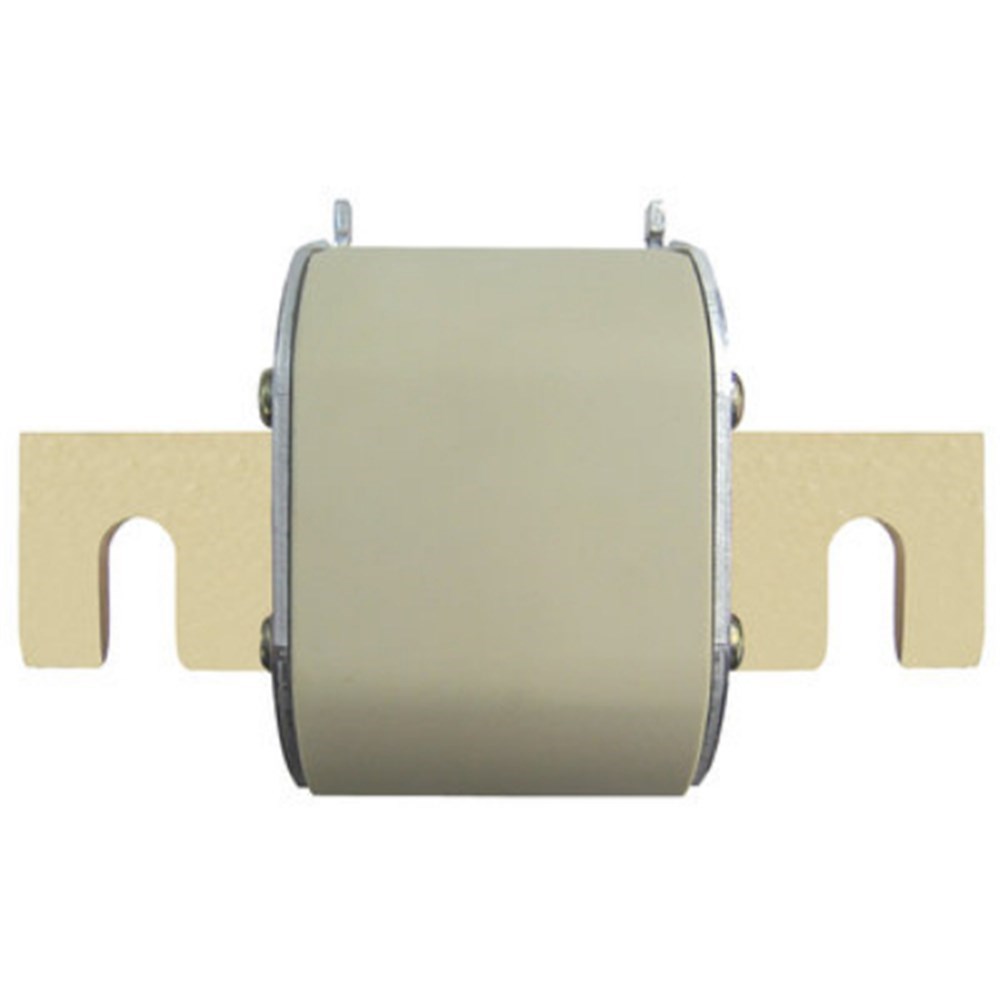

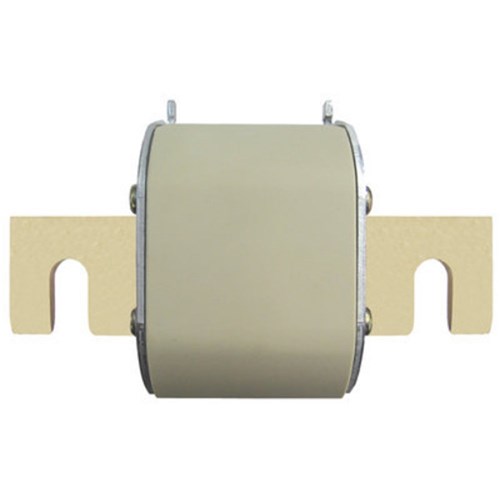

Mersen NHG4-800 Blade Type Fuse Link 800A 500VAC NH4 90mm 120kA For: NH4 Base

Product Code: NHG4-800

  • NH DIN Blade for electrical systems
  • Handles up to 800 A current
  • Operates at 500 VAC voltage
  • Compatible with NH4 Base
  • High breaking capacity of 120 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
NH
Application
General purpose cable and line protection

Electrical

Utilization Category
gG
Breaking Capacity
120kA
Rated Current (In)
800A
Rated Voltage (Ur)
500V AC / 250V DC

Mechanical

Body Style
Square body
Indicators
Top indicator
Material
Body:Ceramic, silver-plated copper contacts
Size Code
NH4
Connection/Termination
Knife blade

Dimensions & Physical Data

Length
199.5mm (approx.)
Weight
2.59kg (Approx.)
Width
100mm (approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 and -2, VDE 0636 Part 201
