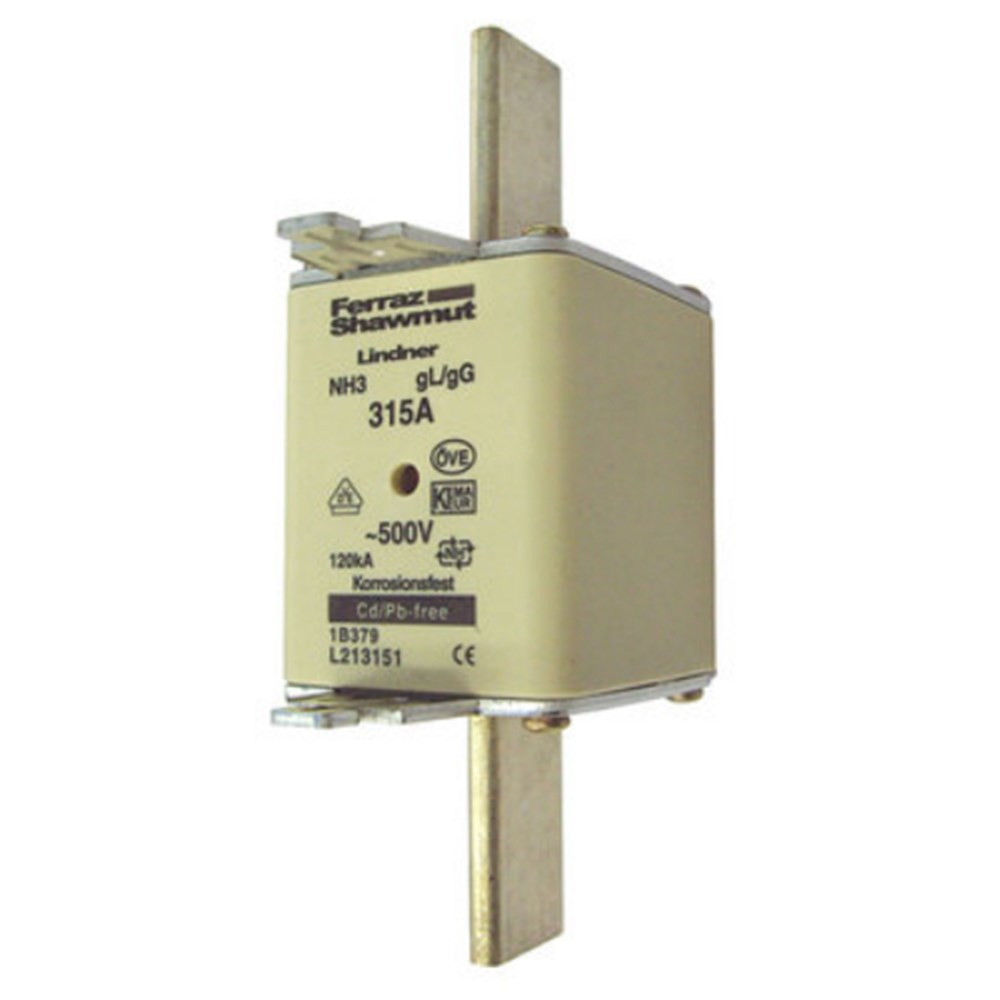

Mersen NHG3-315 Time-Delay Midget Fuse 315A 500VAC

Product Code: NHG3-315

  • NH DIN Blade with 315 A current rating
  • Supports up to 500 VAC voltage
  • Compact body size of 51 mm
  • High breaking capacity of 120 kA
  • Compatible with NH3 fuse size
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
NH
Application
General purpose cable and line protection

Electrical

Utilization Category
gG
Breaking Capacity
120kA
Rated Current (In)
315A
Rated Voltage (Ur)
500V AC / 250V DC

Mechanical

Body Style
Square body
Indicators
Double indicator
Material
Body:Ceramic, silver-plated copper contacts
Size Code
NH3
Connection/Termination
Knife blade

Dimensions & Physical Data

Length
150mm (approx.)
Weight
0.65kg (Approx.)
Width
51mm (approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 and -2, VDE 0636 Part 201
