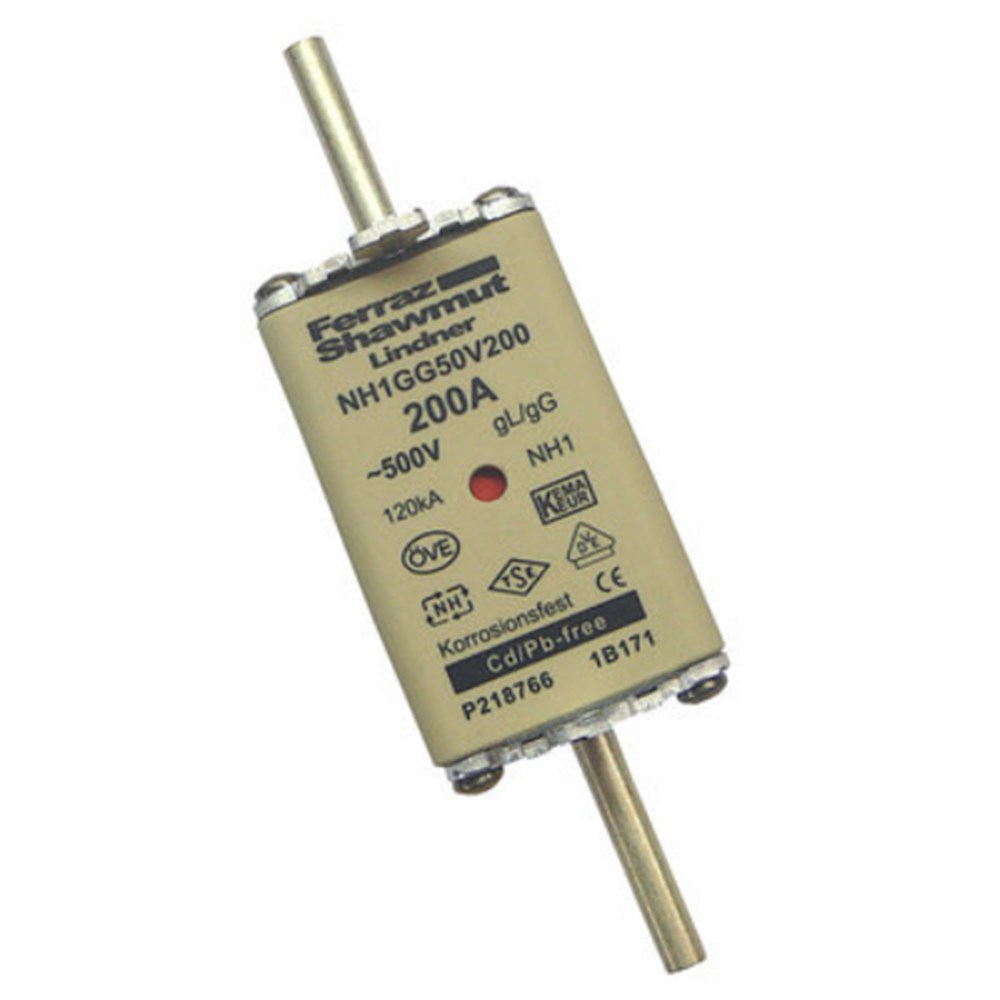

Mersen NHG1-200 Blade Type Fuse Link 200A 500VAC NH1 39.5mm 120kA For: NH1 Bases and Disconnects

Product Code: NHG1-200

  • Suitable for NH1 bases and disconnects
  • Rated current of 200 A
  • Operates at 500 VAC
  • High breaking capacity of 120 kA
  • Compact body size of 39.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
NH Fuse - Link
Brand
Mersen
Series
NH
Application
Protection of cables, lines, and industrial electrical equipment

Electrical

Utilization Category
gG
Breaking Capacity
up to 120 kA
Rated Current (In)
200A
Rated Voltage (Ur)
500V AC / 250V DC

Mechanical

Body Style
Square body blade fuse
Contact Material
Silver-plated copper / copper blades
Indicators
Double indicator (visual)
Material
Ceramic body
Mounting
Clip / holder (NH base)

Dimensions & Physical Data

Size
NH1

Safety, Standards & Compliance

Standards and Approvals
IEC 60269
