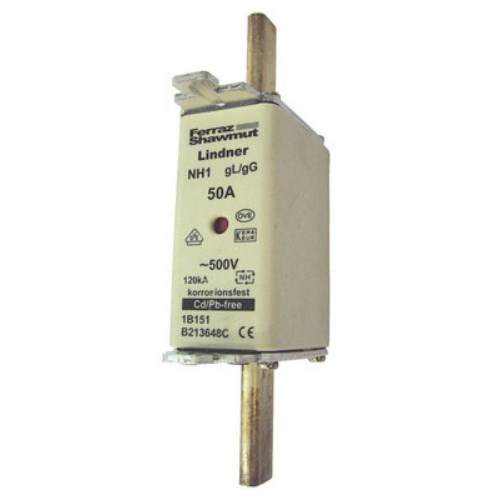

Mersen NHG1-050 Blade Type Fuse Link 50A 500VAC NH1 29.5mm 120kA For: NH1 Bases and Disconnects

Product Code: NHG1-050

  • Supports 50 A rated current
  • Operates at 500 VAC
  • Compatible with NH1 bases
  • High breaking capacity of 120 kA
  • Compact body size of 29.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Series
NH
Application
General purpose cable and line protection

Electrical

Utilization Category
gG
Breaking Capacity
120kA
Rated Current (In)
50A
Rated Voltage (Ur)
500V AC / 250V DC

Mechanical

Body Style
Square body
Indicators
Double indicator
Material
Body:Ceramic, silver-plated copper contacts
Size Code
NH1
Connection/Termination
Knife blade

Dimensions & Physical Data

Depth
64mm (approx.)
Length
135mm (approx.)
Weight
0.28kg (Approx.)
Width
30mm (approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 and -2, VDE 0636 Part 201

Documents

IPD Product Catalogue V17
