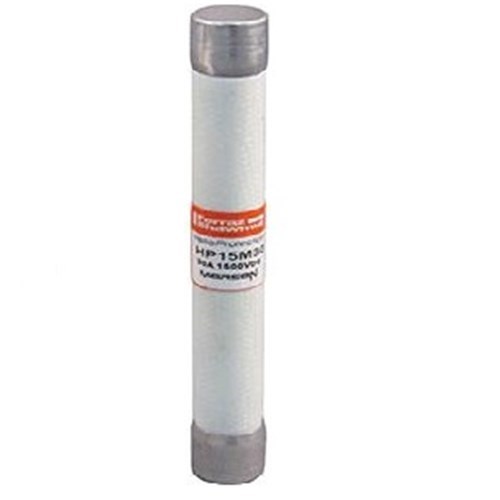

Mersen HP15M32 Photovoltaic Fuse 32 A 1500VDC gPV 10mm Dia x 85mm Fuse Ferrule Terminal

Product Code: HP15M32

  • Rated for 32 A and 1500 VDC
  • UL Listed, IEC 60269-6 compliant
  • High interrupt rating of 50 kA
  • Tin plated copper terminals
  • Compact length of 85 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photovoltaic fuse-link
Brand
Mersen
Series
HelioProtection HP15MxxR
Application
PV string/array protection, combiner boxes, inverters and battery charge controllers

Electrical

Utilization Category
gPV
Breaking Capacity
50 kA DC
Rated Current
32 A
Rated Voltage
1500 V DC

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Body:GMG, Terminal: Tin-Plated Copper
Mounting
Clip
Size Code
10 x 85
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
85 mm
Weight
0.0136 kg (Approx.)
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-19; CSA C22.2; IEC 60269-6
