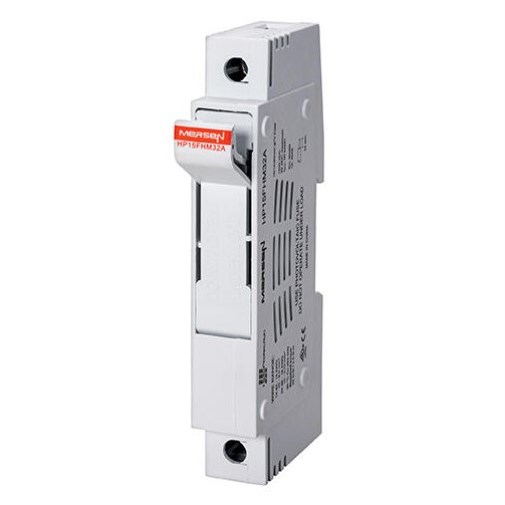

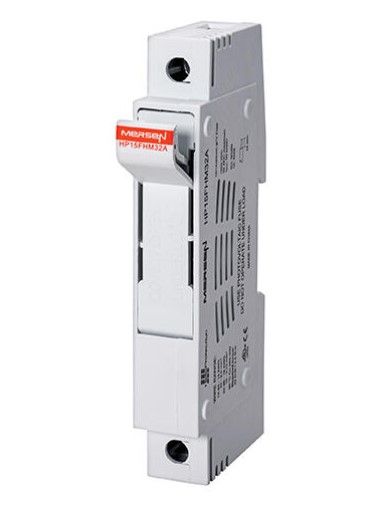

Mersen HP15FHM32A Photovoltaic Fuse 32 A 1500VDC 10mm Dia x 85mm L Fuse

Product Code: HP15FHM32A

  • Supports up to 32 A at 1500 VDC
  • Compact size: 22.3 mm width, 67 mm height
  • DIN Rail mounting for easy installation
  • Operates in extreme temps: -40 to 125°C
  • IP20 protection against touch and dust
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Holder
Brand
Mersen
Application
1500 V DC utility-scale photovoltaic combiner boxes

Electrical

Breaking Capacity
50kA DC
Rated Current (In)
32A
Rated Voltage (Ur)
1500V DC

Mechanical

Cable Entry
Standard PV wiring / comb bus bars
Indicators
LED indicator
Material
UL 94 V-0 high-performance polymer
Mounting
35 mm DIN rail mounting
Connection/Termination
Screw terminals

Dimensions & Physical Data

Weight
0.0816kg (Approx.)

Environmental

IP Rating
IP20 finger-safe

Safety, Standards & Compliance

Standards and Approvals
UL 4248-19; CSA C22.2 No. 4248.19; IEC 60269-2
