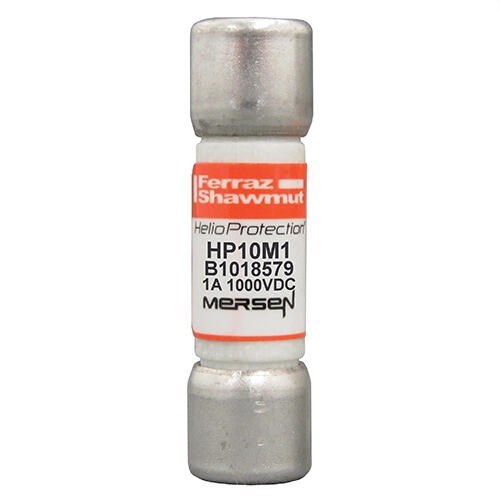

Mersen HP10M1 Photovoltaic Fuse 1 A 1000VDC gPV 10mm Dia x 38mm Fuse Ferrule Terminal

Product Code: HP10M1

  • Rated voltage of 1000 VDC
  • Interrupt rating of 50 kA
  • UL and CSA approved for safety
  • Compact design, 38 mm length
  • Tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photovoltaic fuse-link
Brand
Mersen
Series
HelioProtection HP10M
Application
PV string/array protection, combiner boxes, inverters and battery charge controllers

Electrical

Utilization Category
gPV
Breaking Capacity
50 kA DC
Rated Current
1 A
Rated Voltage
1000 V DC

Mechanical

Body Style
Cylindrical
Indicators
without indicator
Material
Body:GMG, Terminal: Tin-Plated Copper
Mounting
Clip
Size Code
10 x 38
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
38 mm
Weight
0.0091 kg (Approx.)
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
UL 2579; CSA C22.2; IEC 60269-6

Documents

IPD Product Catalogue V17
