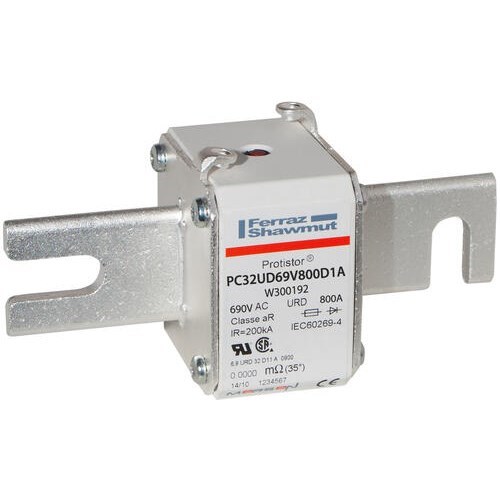

MERSEN FUSE LINK 800A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V W300192

Product Code: W300192

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Series
aR
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
800A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Speed Class
aR

Mechanical

Body Style
Square body
Indicators
Striker
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
Size 32
Connection/Termination
DIN 110 blades

Dimensions & Physical Data

Depth
65mm
Height
65mm
Length
134.6mm
Weight
0.56kg (Approx.)
Width
59mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
