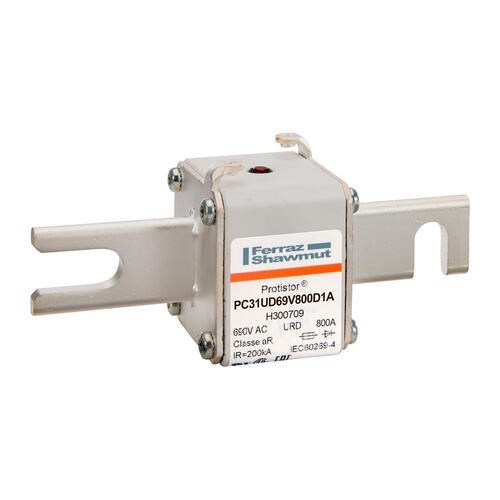

MERSEN FUSE LINK 800A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V H300709

Product Code: H300709

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
800A
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
110mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
DIN 110 blades
Size Code
Size 31
Connection/Termination
DIN 110 blades

Dimensions & Physical Data

Depth
60mm
Height
56.5mm
Length
146mm
Weight
0.39kg (Approx.)
Width
51mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
