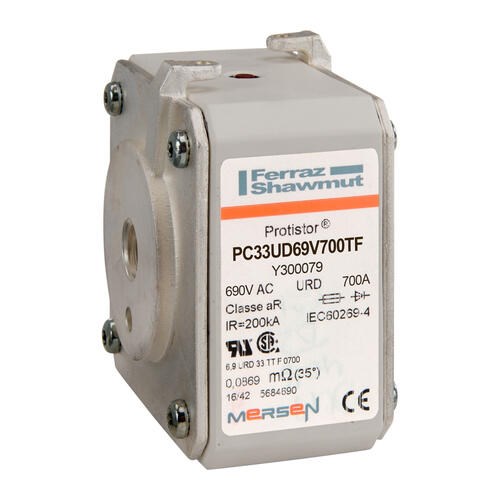

MERSEN FUSE LINK 700A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V Y300079

Product Code: Y300079

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Square Body High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors: diodes, thyristors, IGBT devices, inverters, drives and UPS

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
700A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Indicators
with striker
Material
Ceramic body; silver-plated contacts; sand-filled fuse element
Mounting
End contact / bolted mounting
Size Code
Body size 33
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Weight
0.81kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23
