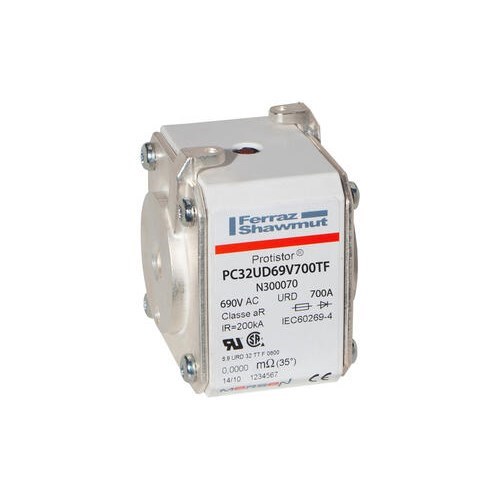

MERSEN FUSE LINK 700A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V N300070

Product Code: N300070

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Square Body High - Speed Fuse
Brand
Mersen
Series
Protistor size 32 aR
Application
Semiconductor protection for power conversion equipment, diodes, thyristors and IGBT devices

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
700A
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra-fast / aR

Mechanical

Body Style
Square body
Indicators
With striker
Material
Silver fuse elements; silver-plated contacts; sand-filled body
Mounting
Fuse holder
Size Code
Size 32
Connection/Termination
Flush ends metric threads

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4 CCC, CSA, UL, CE, UKCA, RoHS, REACH

Documents

IPD Product Catalogue V17
