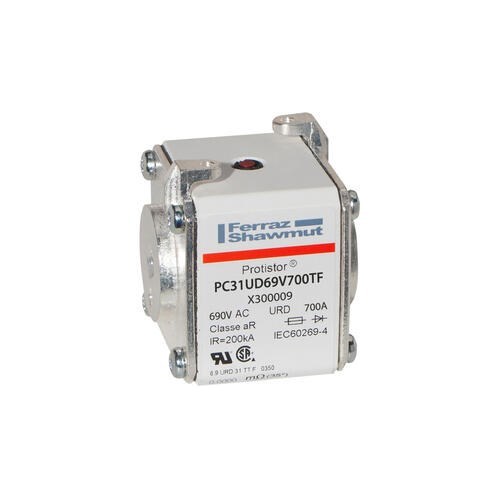

MERSEN FUSE LINK 700A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V X300009

Product Code: X300009

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Series
aR
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
700A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Speed Class
aR

Mechanical

Body Style
Square body
Indicators
Striker
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
Size 31
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Depth
60mm
Height
56.5mm
Length
78mm overall
Weight
0.39kg (Approx.)
Width
51mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
