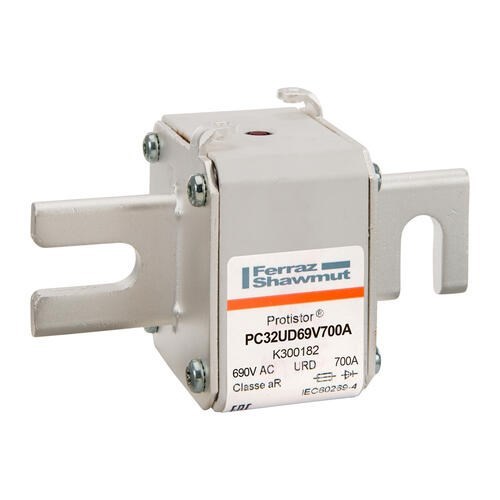

MERSEN FUSE LINK 700A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V K300182

Product Code: K300182

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
700A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
80mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
DIN 80 blades
Size Code
Size 32
Connection/Termination
DIN 80 blades

Dimensions & Physical Data

Depth
59mm
Height
65mm
Length
110mm
Weight
0.529kg (Approx.)
Width
59mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
