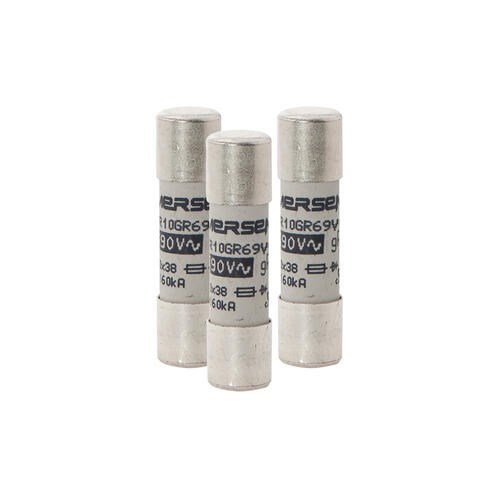

MERSEN FUSE LINK 6A 690V gR 10*38MM FOR SEMICONDUCTOR PROTECTION USE CMS101 BASE 10F06 10GR06 Y1014574

Product Code: Y1014574

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High-speed fuse-link
Brand
Mersen
Series
gR
Application
Semiconductor protection

Electrical

Utilization Category
gR
Breaking Capacity
200 kA AC
Rated Current
6 A
Rated Frequency
50/60 Hz
Rated Voltage
690 V AC
Speed Class
gR

Mechanical

Body Style
Cylindrical
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
10 x 38
Connection/Termination
Ferrule end caps
Fuse Holder
CMS101

Dimensions & Physical Data

Length
38 mm
Weight
0.008 kg (Approx.)
Width
Ø 10 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
