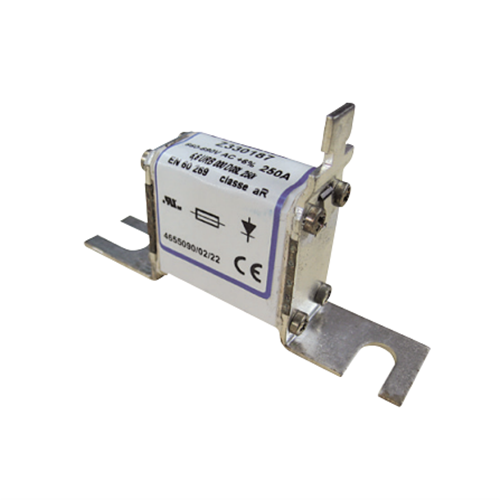

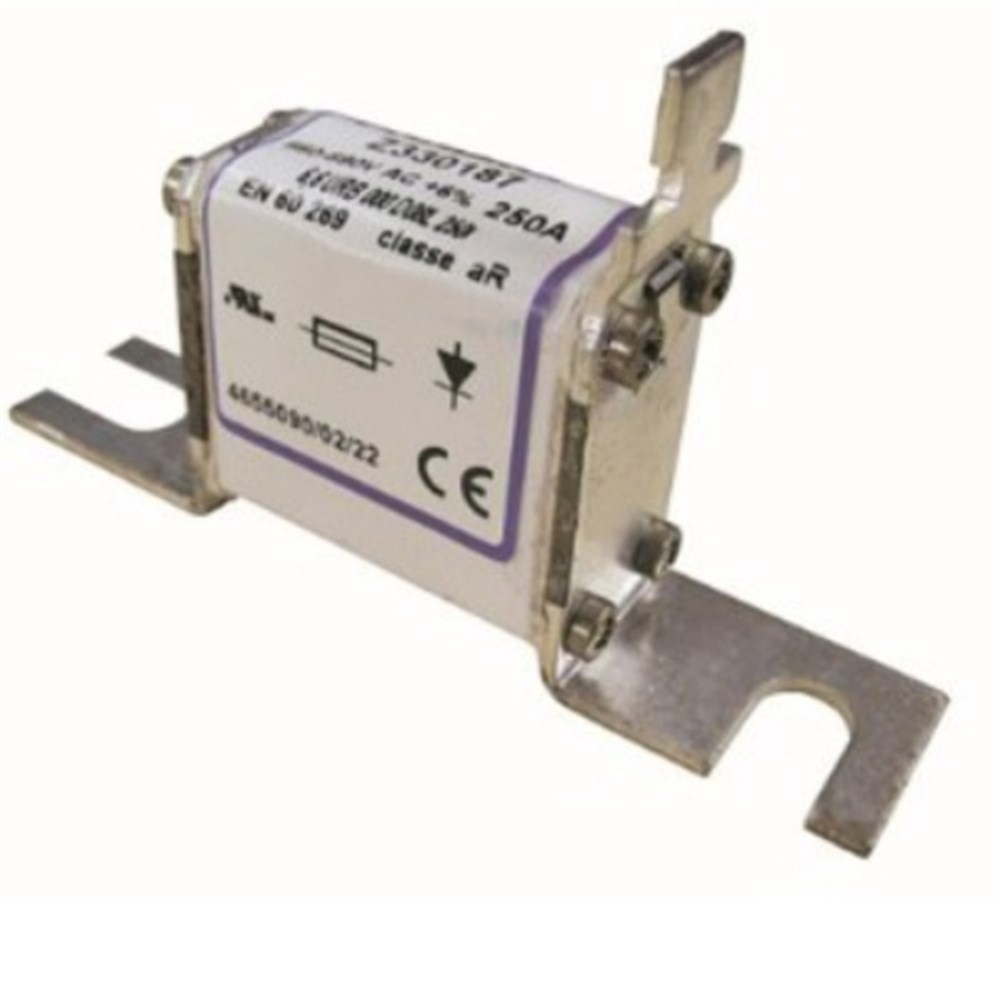

MERSEN FUSE LINK 63A GRB 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 000, 660V P330178

Product Code: P330178

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Semiconductor protection

Electrical

Suitable For
Size 000 DIN fuse bases
Utilization Category
gR
Breaking Capacity
200kA AC
Rated Current (In)
63A
Rated Voltage (Ur)
690V AC
Speed Class
Fast acting

Mechanical

Body Style
Square body
Fixing Centres
80mm
Indicators
With indicator
Material
Ceramic body, silver-plated contacts
Mounting
DIN blade
Size Code
Size 000
Connection/Termination
DIN 80 blade

Dimensions & Physical Data

Length
100mm overall
Width
20mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
