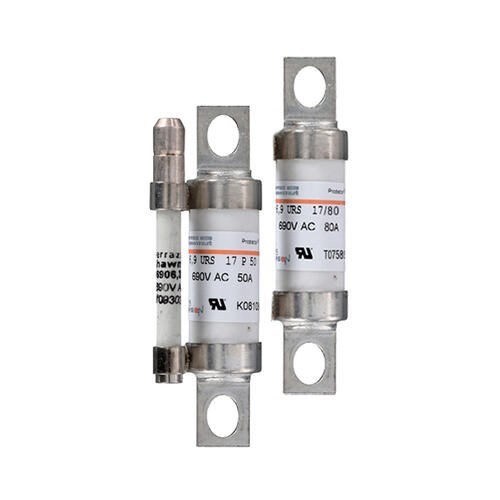

MERSEN FUSE LINK 63A 690V OFFSET TAG FOR SEMI CONDUCTOR PROTECTION WITHOUT TRIP INDICATOR R075892

Product Code: R075892

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Series
Protistor BS88 17x49
Application
Semiconductor protection

Electrical

Utilization Category
gR
Breaking Capacity
Extremely high breaking capacity
Rated Current (In)
63A
Rated Voltage (Ur)
690V AC IEC; 700V AC/DC UL
Speed Class
gR

Mechanical

Body Style
British Standard fuse-link
Indicators
without trip indicator
Size Code
17 x 49
Connection/Termination
Offset tag

Dimensions & Physical Data

Length
49mm
Width
17mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1, IEC 60269-4; BS88-4

Documents

IPD Product Catalogue V17
