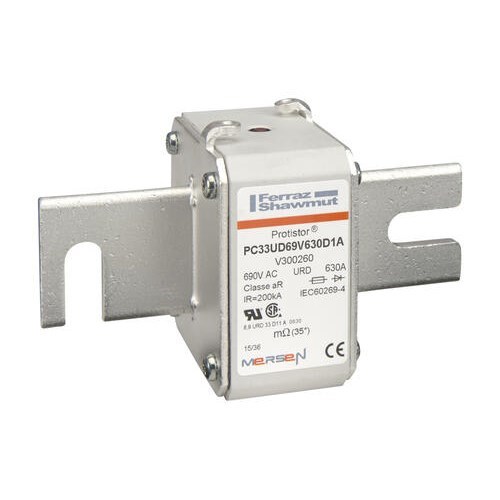

MERSEN FUSE LINK 630A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V V300260

Product Code: V300260

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Application
Protection of inverters, motor drives, UPS systems and similar 690 V or less equipments

Electrical

Utilization Category
aR
Rated Current (In)
630A
Rated Voltage (Ur)
690V
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Fixing Centres
110mm
Indicators
Wth striker
Material
Body:Ceramic, Terminal: Silver plated copper
Size Code
Size 33
Connection/Termination
DIN 110 Blades

Dimensions & Physical Data

Height
78.5mm
Length
134.6mm
Weight
0.87kg (Approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60269.4

Documents

IPD Product Catalogue V17
