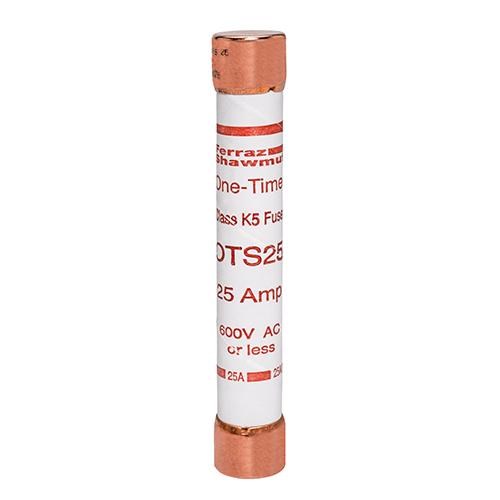

MERSEN FUSE LINK 600VAC 300VDC 25A UL CLASS K-5 GENERAL PURPOSE FERRULE 21*127MM OTS25

Product Code: OTS25

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Class K5 Fast - Acting Fuse
Brand
Mersen
Series
OTS
Application
General purpose branch-circuit and equipment protection

Electrical

Utilization Category
Class K5
Breaking Capacity
50kA
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
600V AC / 300V DC
Speed Class
Fast acting

Mechanical

Body Style
Cylindrical / ferrule
Indicators
without indicator
Mounting
Clip-in fuse holder
Size Code
21 x 127
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
127mm
Weight
0.0499kg
Width
Ø 21mm

Safety, Standards & Compliance

Standards and Approvals
UL 248-9; CSA C22.2 No. 248.9

Documents

IPD Product Catalogue V17
