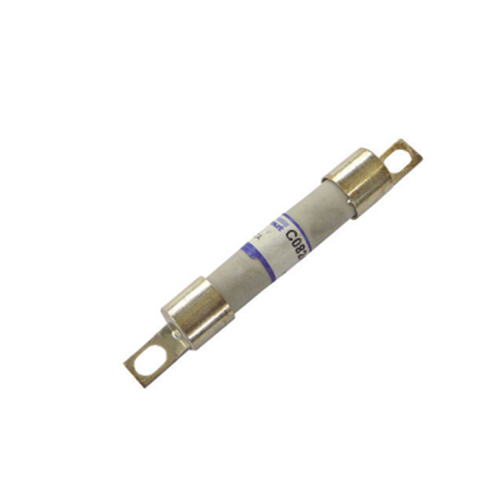

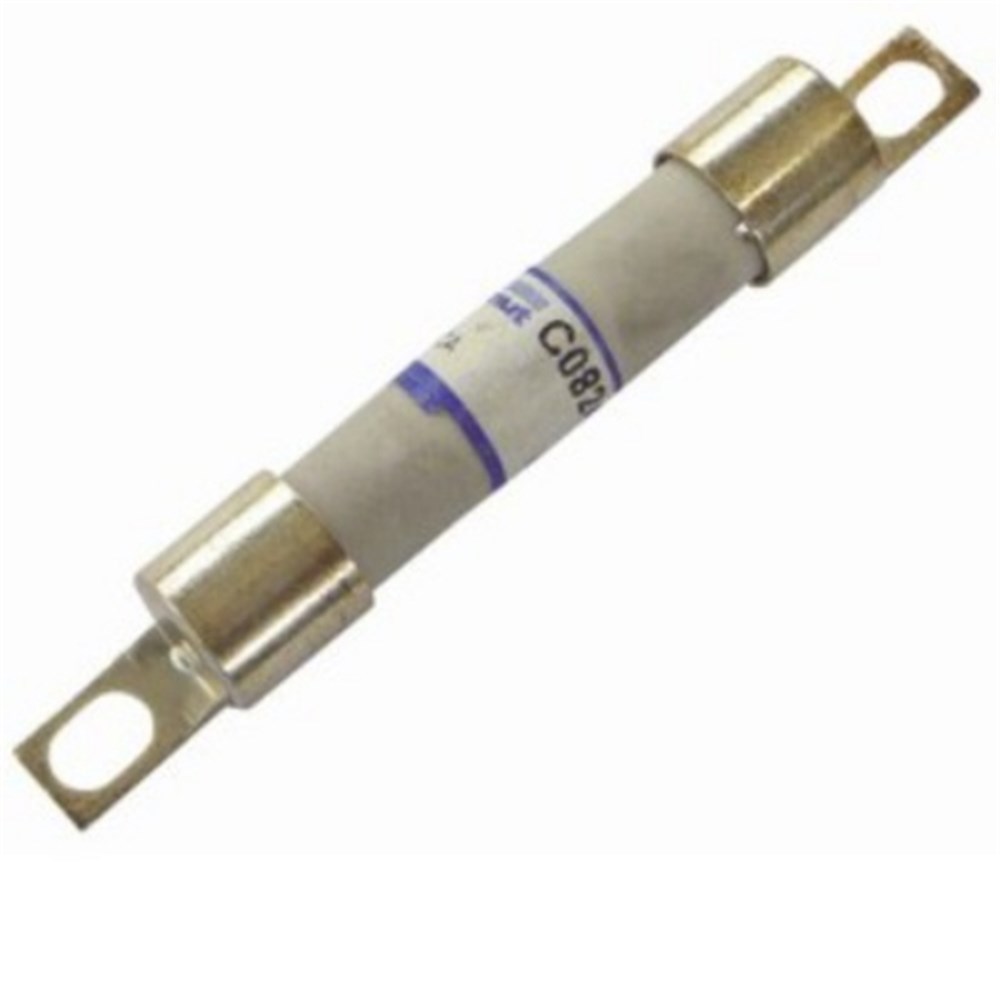

MERSEN FUSE LINK 5A 690V OFFSET TAG SINGLE BODY SEMICONDUCTOR BS88 EQU TO GSB5 D082458

Product Code: D082458

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed BS88 Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronics

Electrical

Utilization Category
gR
Breaking Capacity
200 kA AC
Rated Current (In)
0.208333
Rated Voltage (Ur)
690 V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Offset tag single body
Fixing Centres
73 mm
Indicators
Without indicator
Material
Ceramic body, silver-plated contacts
Mounting
Offset tag / bolted
Size Code
17 x 49
Connection/Termination
Offset tag blades

Dimensions & Physical Data

Height
17 mm
Length
49 mm
Weight
0.035 kg (Approx.)

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
