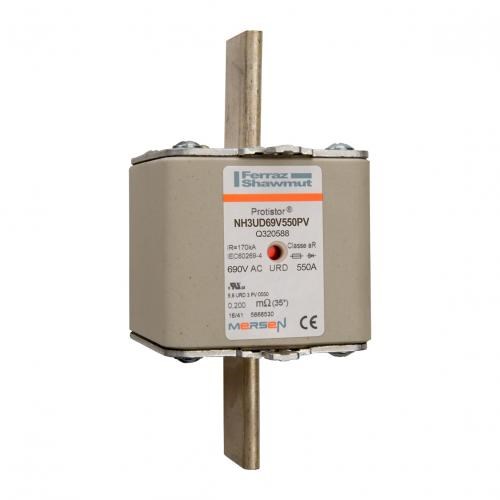

MERSEN FUSE LINK 550A NH3 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD3-550/69 Q320588

Product Code: Q320588

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Series
aR
Application
Semiconductor protection

Electrical

Suitable For
NH fuse bases / fuse switch disconnectors
Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
550A
Rated Frequency
50/60Hz
Speed Class
aR

Mechanical

Body Style
NH DIN body
Indicators
Striker
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
NH3
Connection/Termination
DIN blade

Dimensions & Physical Data

Depth
89mm
Length
150mm
Weight
1.05kg (Approx.)
Width
72mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; DIN 43620

Documents

IPD Product Catalogue V17
