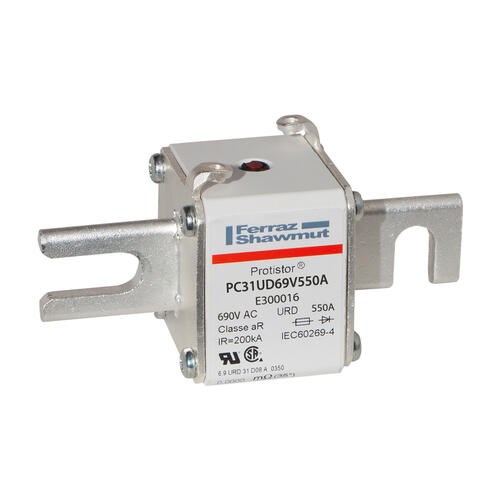

MERSEN FUSE LINK 550A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V E300016

Product Code: E300016

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
550A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
77mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
DIN 80 blades
Size Code
Size 31
Connection/Termination
DIN 80 blade tags

Dimensions & Physical Data

Depth
56.5mm
Length
110mm
Weight
0.39kg (Approx.)
Width
51mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
