Specifications

Product Type Fuse Link	Brand Mersen	Series Protistor size 30 aR, 600 to 690 V AC IEC / 700 V AC UL
Application Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Utilization Category aR	Breaking Capacity 200kA AC	Rated Current (In) 550A
Rated Voltage (Ur) 690V AC IEC / 700V AC UL	Speed Class Ultra fast acting

Body Style Square body	Fixing Centres 77mm	Indicators Striker
Material Ceramic body, silver-plated copper contacts, non-magnetic hardware	Mounting DIN 80 blades	Size Code Size 30
Connection/Termination DIN 80 blade tags

Depth 51mm	Length 110mm	Weight 0.30kg (Approx.)
Width 45mm

Standards and Approvals

IEC 60269-4

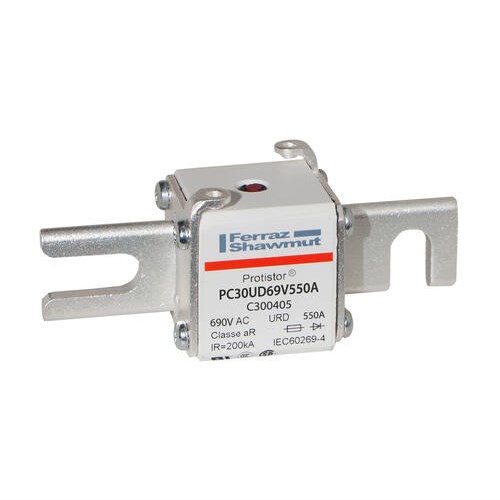

MERSEN FUSE LINK 550A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V C300405
