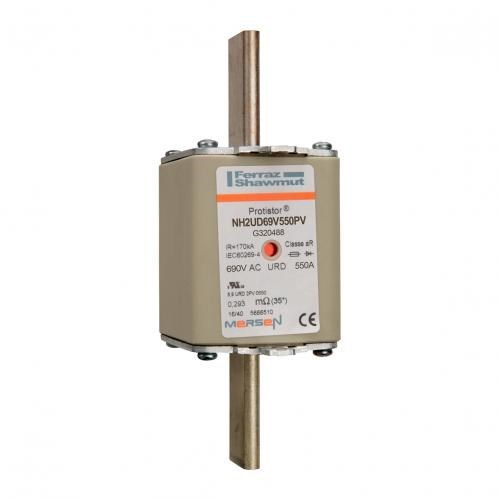

MERSEN FUSE LINK 550A 690V URD NH2 FOR SEMICONDUCTOR PROTECTION USE NH FUSE BASES G320488

Product Code: G320488

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Semiconductor protection using NH fuse bases

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
550A
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra fast acting

Mechanical

Body Style
NH DIN body
Indicators
Double indicator
Material
Ceramic body, silver-plated contacts
Mounting
NH fuse base / DIN blades
Size Code
NH2
Connection/Termination
NH knife blades

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
