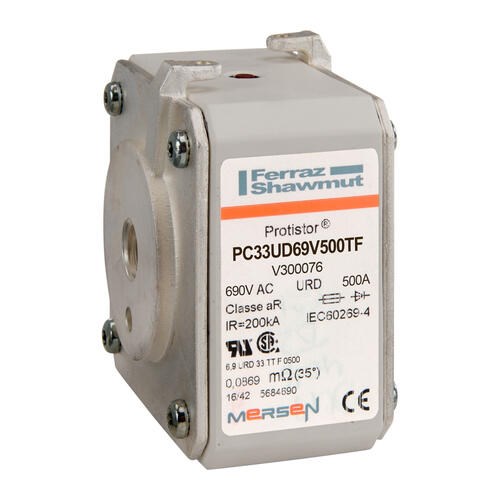

MERSEN FUSE LINK 500A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V V300076

Product Code: V300076

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
IPD
Application
Protection of inverters, motor drives, UPS systems and similar 690 V or less equipments

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
500A
Rated Voltage (Ur)
690V
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Indicators
Wth striker
Material
Body:Ceramic, Terminal: Silver plated brass
Size Code
Size 33
Connection/Termination
Flush ends

Dimensions & Physical Data

Height
50.6mm
Length
78.5mm
Weight
0.81kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269.4

Documents

IPD Product Catalogue V17
