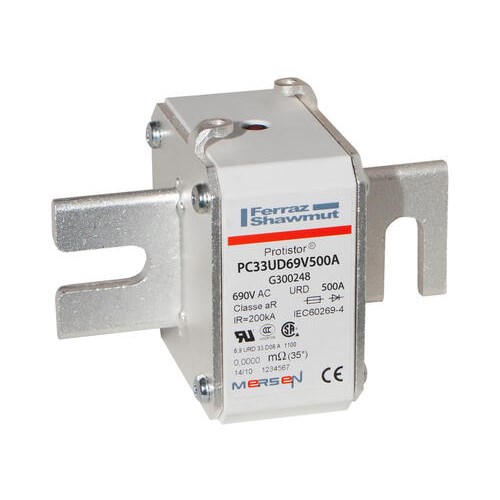

MERSEN FUSE LINK 500A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 660V G300248

Product Code: G300248

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
500A
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
80mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
DIN 80 blades
Size Code
Size 33
Connection/Termination
DIN 80 blades

Dimensions & Physical Data

Depth
73mm
Height
78.5mm
Length
134.6mm
Weight
0.874kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
