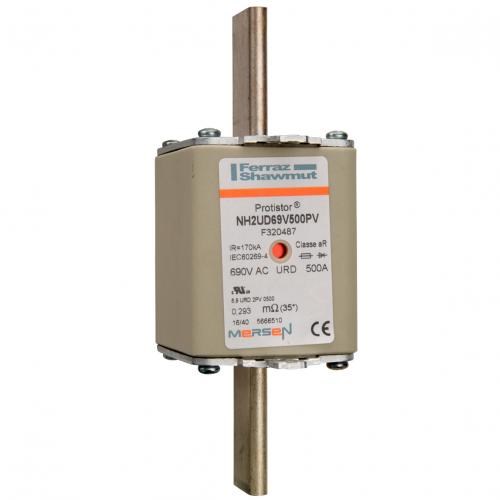

MERSEN FUSE LINK 500A 690V URD NH2 FOR SEMICONDUCTOR PROTECTION USE NH FUSE BASES F320487

Product Code: F320487

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Power semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
500A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
NH square body
Indicators
With double indicator
Material
Body:Ceramic, Terminal: Brass
Mounting
NH fuse holder
Size Code
NH2
Connection/Termination
Plain blades

Dimensions & Physical Data

Depth
74mm
Length
150mm
Weight
0.62kg (Approx.)
Width
52mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; DIN 43620/00; RoHS

Documents

IPD Product Catalogue V17
