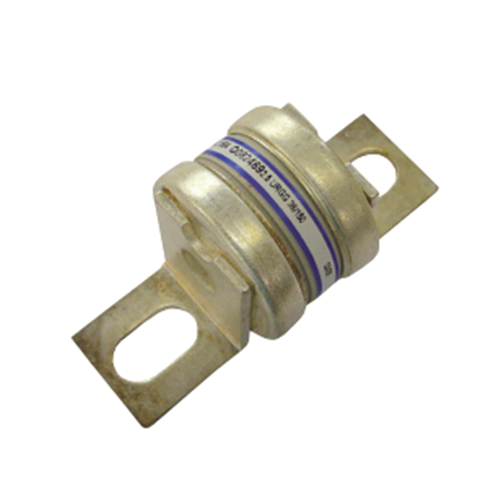

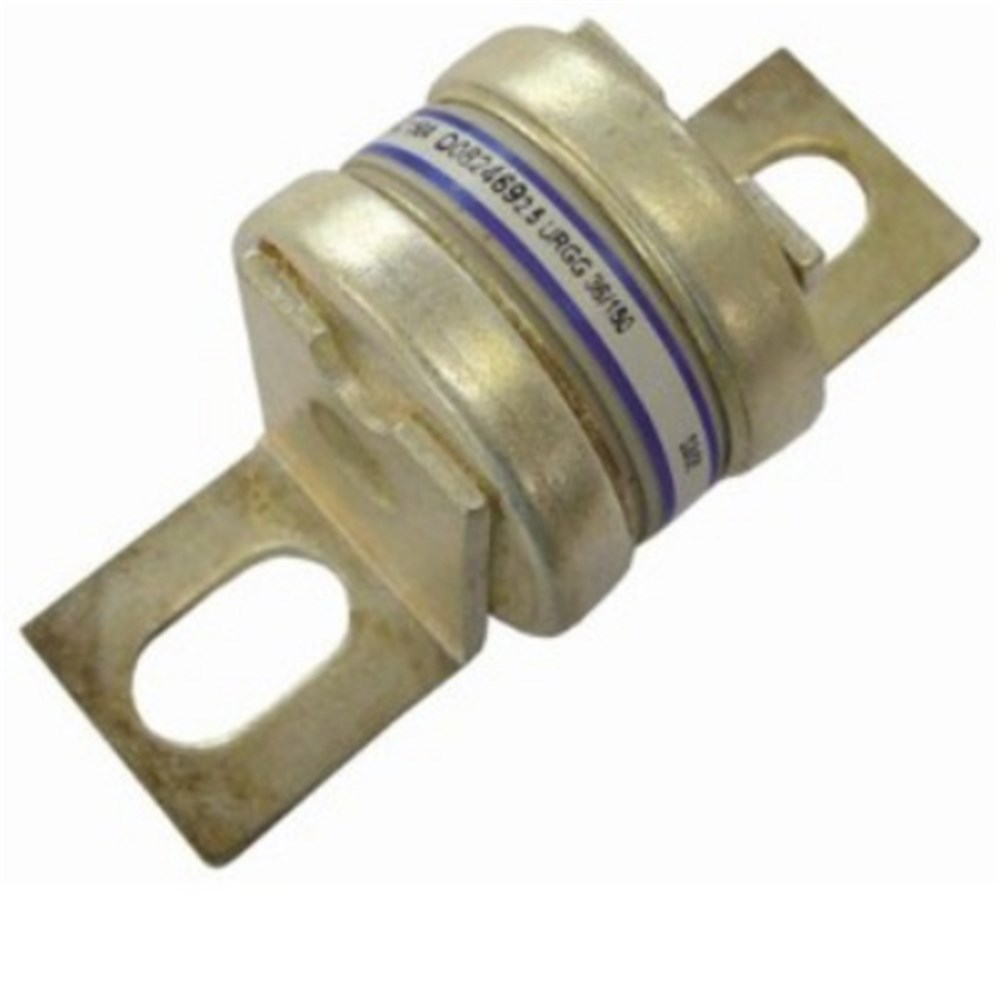

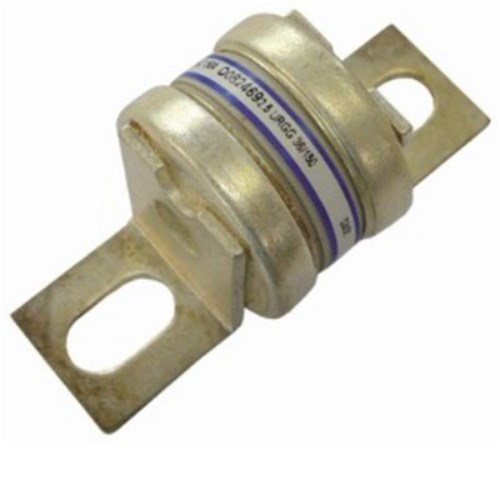

MERSEN FUSE LINK 500A 250V OFFSET TAG SINGLE BODY SEMICONDUCTOR J075540

Product Code: J075540

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed BS88 Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronics

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
500A
Rated Voltage (Ur)
250V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Offset tag single body
Indicators
Without indicator
Material
Ceramic body, silver-plated contacts
Mounting
Offset tag / bolted
Size Code
36 mm body
Connection/Termination
Offset tag blades

Dimensions & Physical Data

Height
32mm
Length
37.3mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
