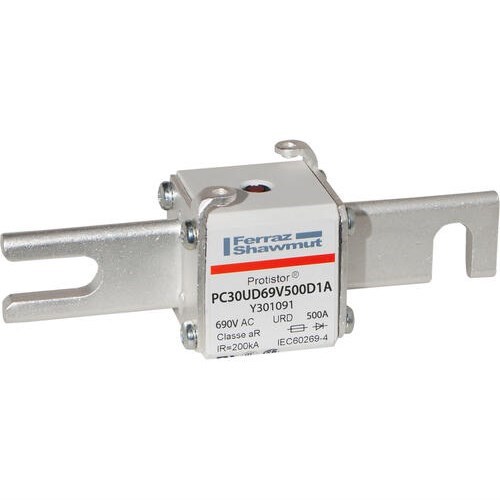

MERSEN FUSE LINK 500A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V Y301091

Product Code: Y301091

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Power semiconductor protection for diodes, thyristors, IGBT and MOSFET devices

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
500A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
110mm
Indicators
With striker
Material
Body:Ceramic, Terminal: Silver plated copper
Mounting
DIN 110 blades
Size Code
Size 30
Connection/Termination
DIN 110 blades

Dimensions & Physical Data

Depth
48mm
Length
134.6mm
Weight
0.31kg (Approx.)
Width
40mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23; CCC GB 13539.4; RoHS
