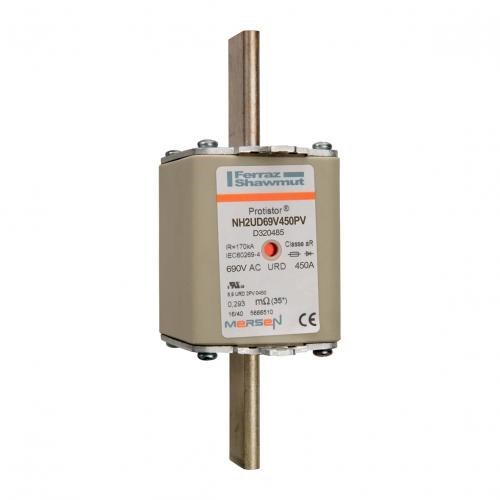

MERSEN FUSE LINK 450A NH2 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD2-450/69 D320485

Product Code: D320485

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
NH High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of semiconductors in power conversion equipment

Electrical

Utilization Category
aR
Breaking Capacity
170kA AC
Rated Current (In)
450A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra-fast acting

Mechanical

Body Style
NH blade fuse
Indicators
double indicator / striker
Material
Ceramic body; silver-plated contacts; sand-filled fuse element
Mounting
NH fuse base / switch disconnector
Size Code
NH2
Connection/Termination
DIN blade terminals
Fuse Holder
NH fuse bases

Dimensions & Physical Data

Weight
0.62kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; DIN 43620

Documents

IPD Product Catalogue V17
