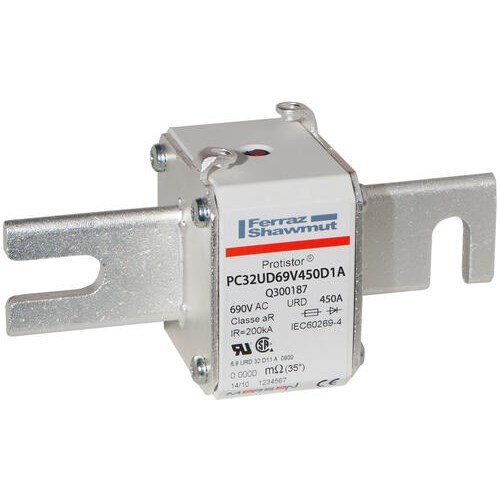

MERSEN FUSE LINK 450A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V Q300187

Product Code: Q300187

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Square Body High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors: diodes, thyristors, IGBT devices, inverters, drives and UPS

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
450A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC IEC / 700V AC UL
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Fixing Centres
110mm
Indicators
with striker
Material
Ceramic body; silver-plated contacts; sand-filled fuse element
Mounting
Blade / bolted mounting
Size Code
Body size 32
Connection/Termination
DIN 110 blades

Dimensions & Physical Data

Weight
0.56kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; VDE 636-23

Documents

IPD Product Catalogue V17
