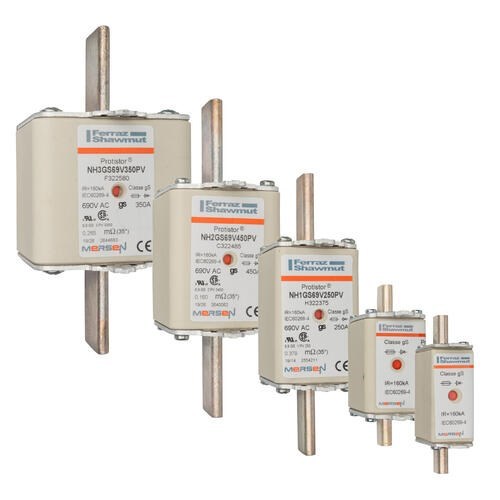

MERSEN FUSE LINK 40A 690V gS 000 DIN FOR SEMICONDUCTOR PROTECTION USE NH FUSE BASES B322047

Product Code: B322047

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Square Body High - Speed Fuse - Link
Brand
Mersen
Series
Protistor NH000 gS 690 V AC
Application
Semiconductor protection for inverters, motor drives, UPS systems and similar equipment up to 700 V

Electrical

Utilization Category
gS
Breaking Capacity
160kA AC
Rated Current (In)
40A
Rated Voltage (Ur)
690V AC
Speed Class
High speed / fast acting

Mechanical

Body Style
NH blade / square body
Fixing Centres
68mm
Indicators
Double indicator
Material
Body:Ceramic, silver-plated contacts
Mounting
NH fuse base / fuse switch disconnector
Size Code
NH000
Connection/Termination
Blade contacts
Fuse Holder
NH modular fuse holders

Dimensions & Physical Data

Height
52mm
Length
78mm
Weight
0.13kg (Approx.)
Width
21mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; DIN 43620/00; CCC GB 13539.4

Documents

IPD Product Catalogue V17
