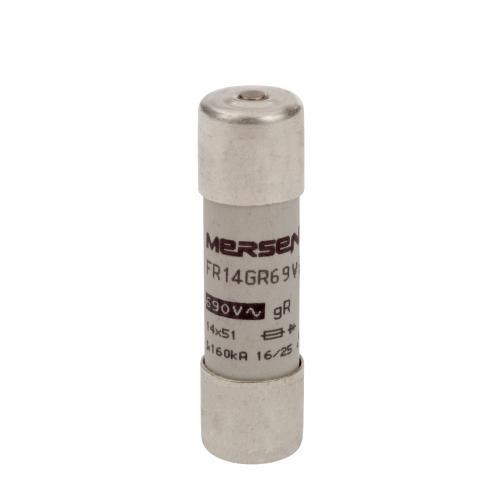

MERSEN FUSE LINK 40A 690V 14*51MM FOR SEMICONDUCTOR PROTECTION + TRIP INDICATOR 14GR40 14F40 S1017191

Product Code: S1017191

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Semiconductor fuse link
Brand
Mersen
Series
Protistor
Application
Semiconductor protection

Electrical

Utilization Category
gR
Breaking Capacity
160 kA
Power Loss
7.5 W
Rated Current
40 A
Rated Voltage
690 V
Speed Class
gR

Mechanical

Body Style
Cylindrical
Indicators
Trip indicator
Material
Body: Ceramic; Contact: Silver plated copper
Mounting
Fuse holder / clip
Size Code
14 x 51
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
51 mm
Weight
0.020 kg (Approx.)
Width
Ø14.3 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 & -4 UL, CCC, CE, UKCA

Documents

IPD Product Catalogue V17
