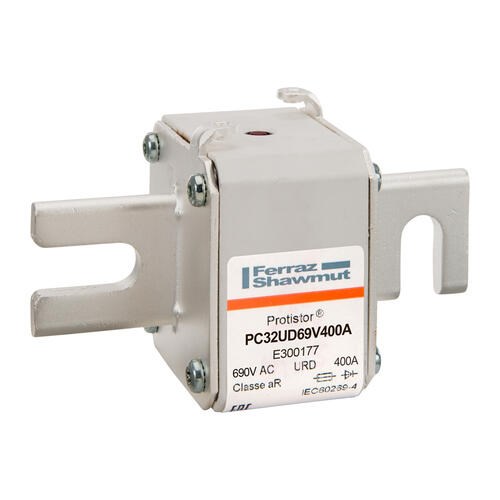

MERSEN FUSE LINK 400A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 32, 660V E300177

Product Code: E300177

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
400A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
77mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
DIN 80 blades
Size Code
Size 32
Connection/Termination
DIN 80 blade tags

Dimensions & Physical Data

Depth
65mm
Length
110mm
Weight
0.5293kg (Approx.)
Width
59mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
