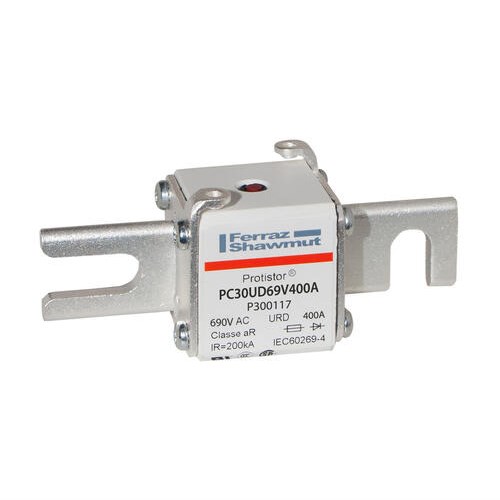

MERSEN FUSE LINK 400A 80MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V P300117

Product Code: P300117

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors: diodes, thyristors, IGBT and MOSFET devices

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
400A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Fixing Centres
80mm
Indicators
with striker
Material
Silver-plated contacts; non-magnetic
Mounting
Blade / bolted mounting
Size Code
Body size 30
Connection/Termination
DIN 80 blades

Dimensions & Physical Data

Weight
0.27kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1; IEC 60269-4; UL recognized file E76491

Documents

IPD Product Catalogue V17
