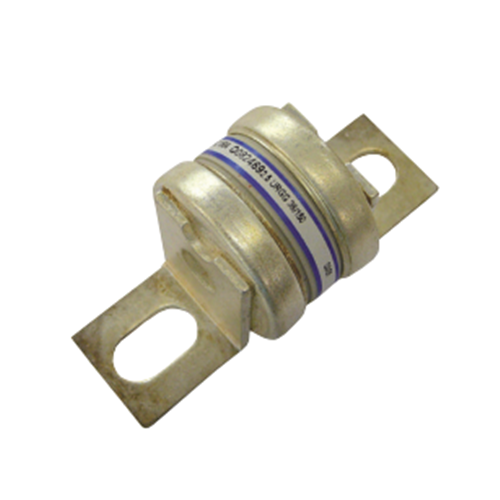

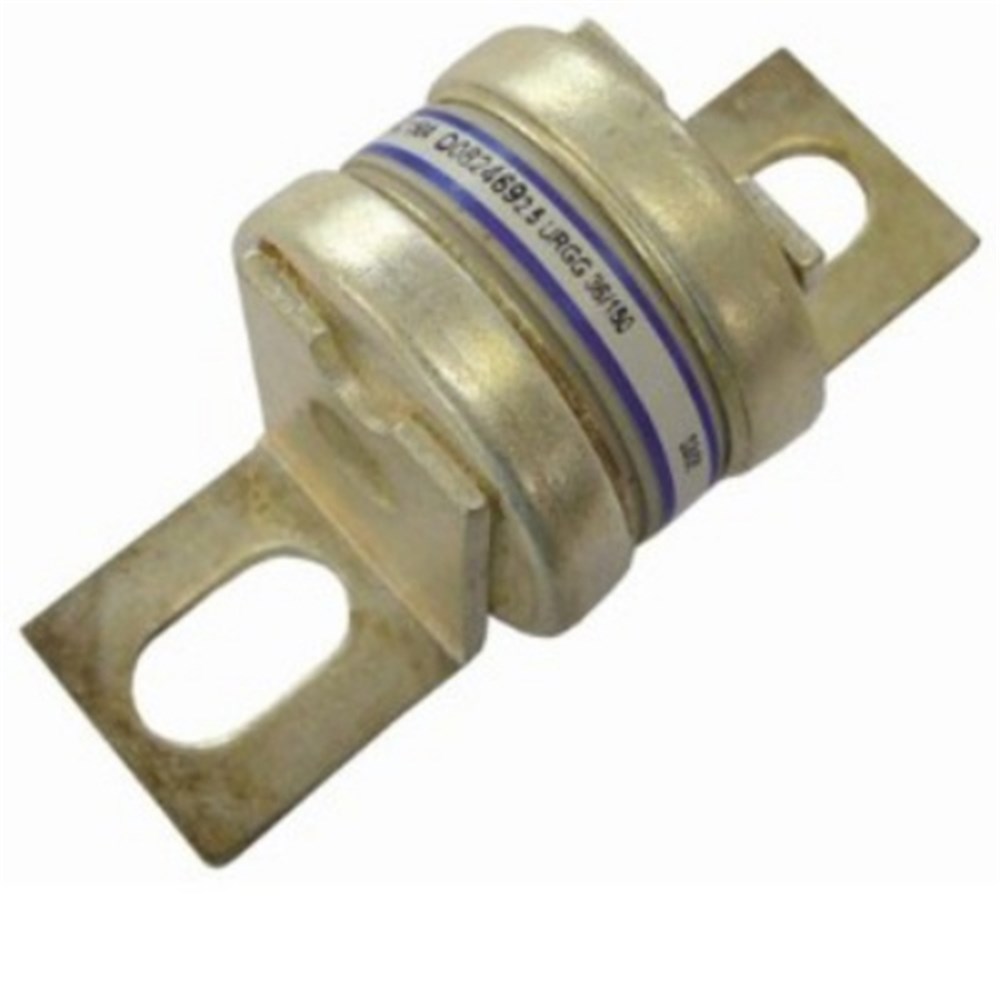

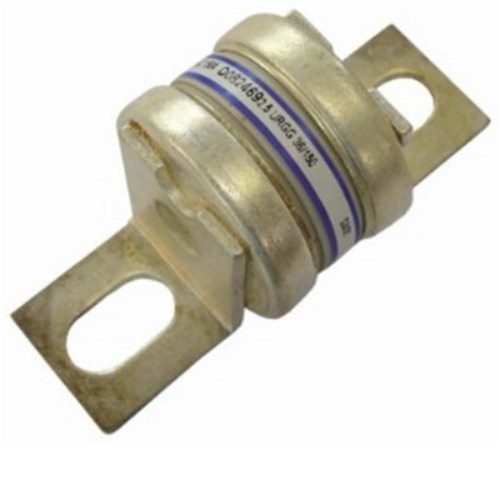

MERSEN FUSE LINK 400A 250V OFFSET TAG SINGLE BODY SEMICONDUCTOR G075538

Product Code: G075538

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
British Standard High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors

Electrical

Utilization Category
gR / aR
Breaking Capacity
High breaking capacity
Rated Current (In)
400A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
250V AC
Speed Class
Ultra-fast acting

Mechanical

Body Style
Offset tag
Indicators
without indicator
Material
Ceramic body; silver-plated contacts
Mounting
Bolted / tag mounting
Size Code
BS36 / single body
Connection/Termination
Offset tag terminals

Dimensions & Physical Data

Weight
0.162kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1; IEC 60269-4; BS88-4
