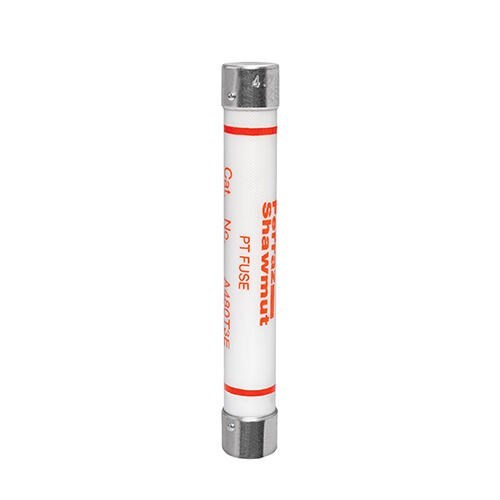

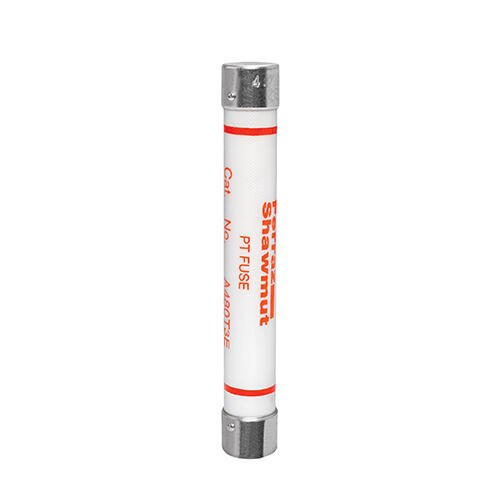

MERSEN FUSE LINK 3A 4.8KV VT 20.6*143 MM FERRULE AIR INSULATED USE H099988-CLIPS A480T3E

Product Code: A480T3E

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Potential Transformer Fuse
Brand
Mersen
Series
A480T
Application
Primary protection for potential transformers and control power transformers

Electrical

Breaking Capacity
80 kA
Rated Current (In)
0.125
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
4.8 kV AC
Speed Class
Current limiting

Mechanical

Body Style
Cylindrical
Fixing Centres
127 mm
Indicators
without indicator
Material
Tin-plated copper ferrules
Mounting
Ferrule/clip mounting
Size Code
20.6 x 143
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
143 mm
Weight
0.1814 kg (Approx.)
Width
Ø 20.6 mm

Documents

IPD Product Catalogue V17
