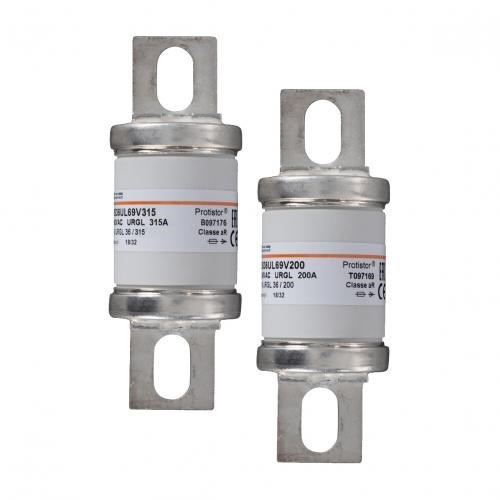

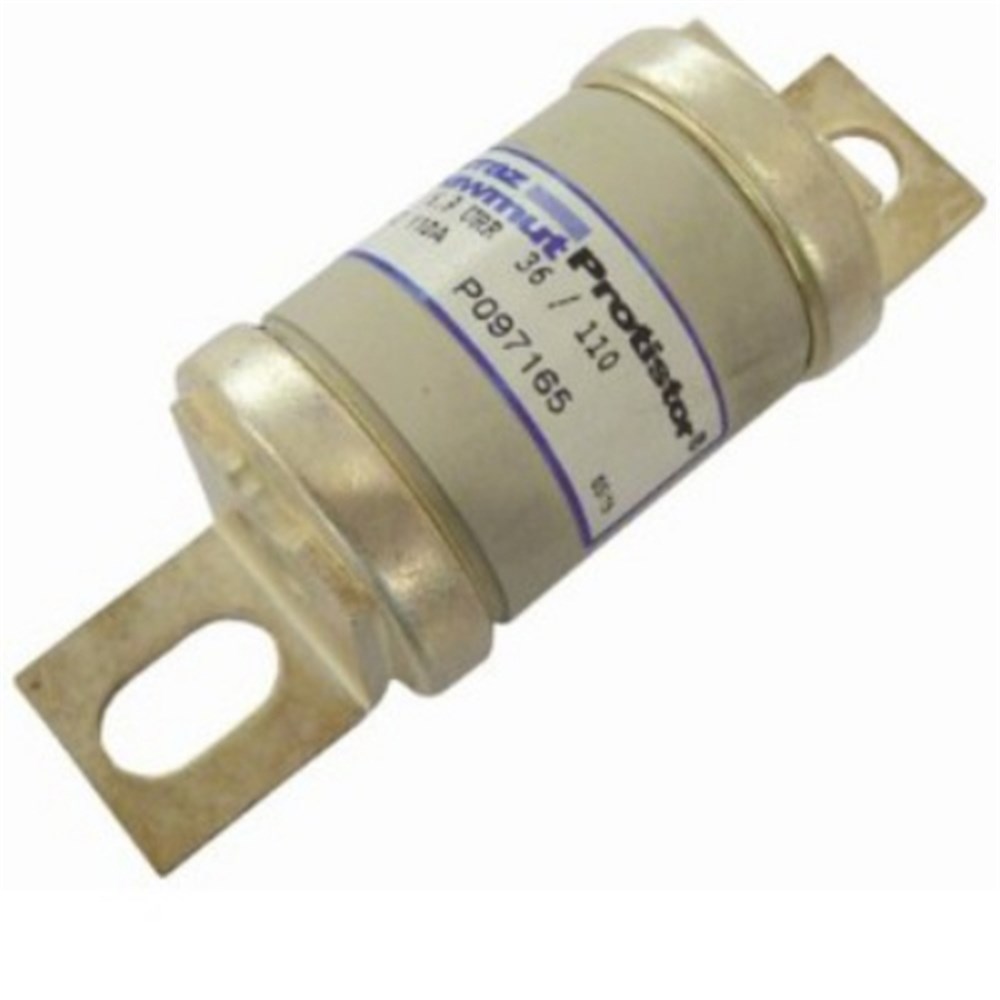

MERSEN FUSE LINK 355A 690V OFFSET TAG FOR SEMICONDUCTOR PROTECTION 6.6 URGL 36/355 C097177

Product Code: C097177

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fuse Link
Brand
Mersen
Application
Power semiconductor protection

Electrical

Utilization Category
aR / URGL
Breaking Capacity
200kA AC @ 690V
Rated Current (In)
355A
Rated Voltage (Ur)
690V AC
Speed Class
High speed / extremely high breaking capacity

Mechanical

Body Style
BS88 offset tag fuse
Indicators
Without trip indicator
Material
Ceramic body, silver fuse elements, metal tags
Mounting
BS88 fuse holder / bolted tag mounting
Size Code
36 x 55
Connection/Termination
Offset tags

Dimensions & Physical Data

Length
55mm
Weight
0.216kg (Approx.)
Width
36mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1; IEC 60269-4; BS88-4; VDE 636-23

Documents

IPD Product Catalogue V17
