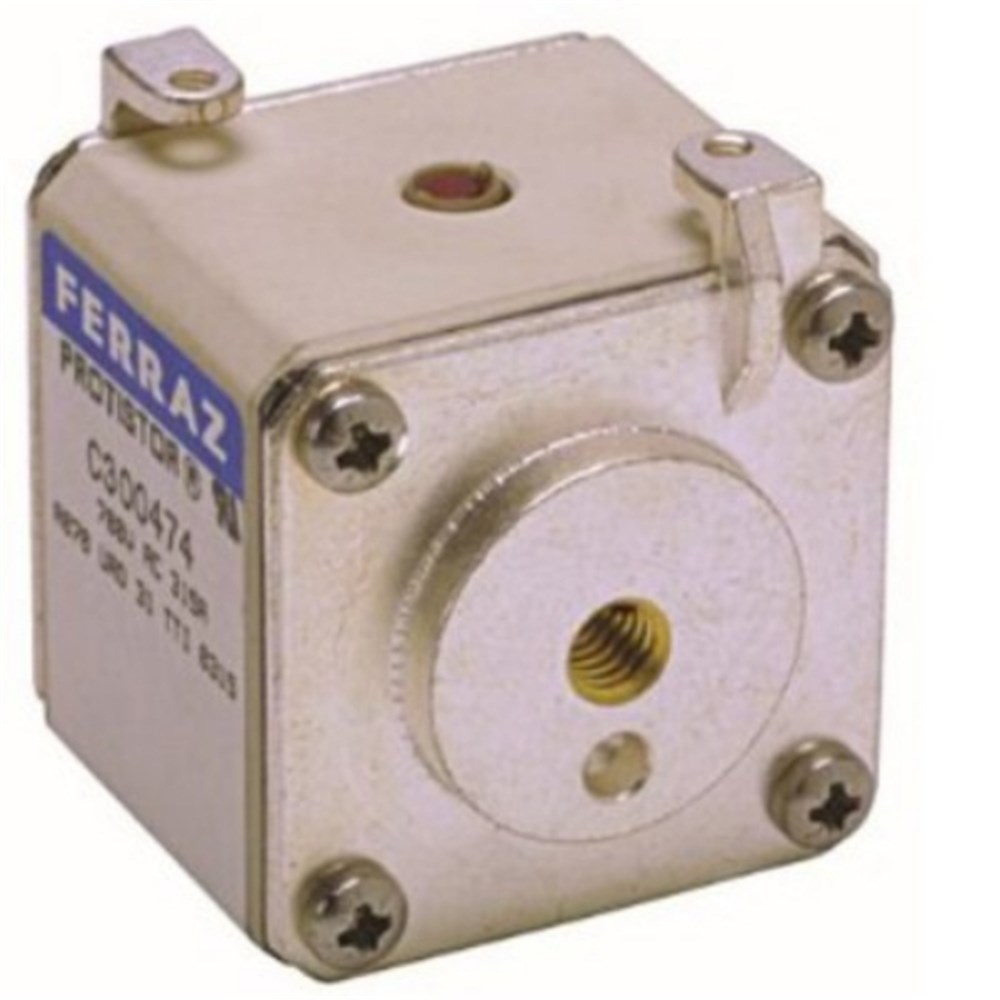

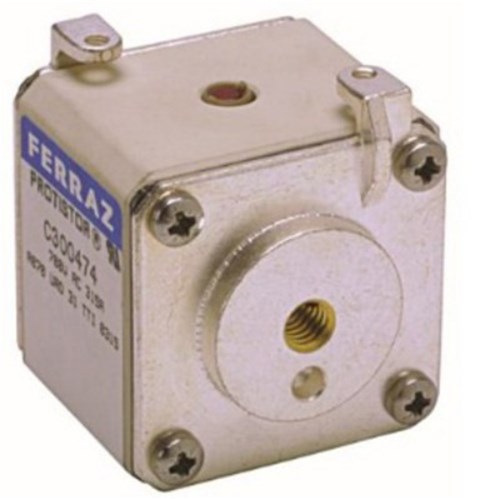

MERSEN FUSE LINK 350A, END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 30, 660V A300058

Product Code: A300058

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Semiconductor Fuse Link - PSC
Brand
Mersen

Electrical

Breaking Capacity
200kA
Rated Current (In)
350A
Rated Voltage (Ur)
690V
Speed Class
aR

Mechanical

Body Style
Square Body
Indicators
With striker type
Material
Body: Ceramic, Terminal:Silver-Plated Copper
Size Code
Size 30
Connection/Termination
Flush ends

Dimensions & Physical Data

Length
50.6mm
Weight
0.25kg (Approx.)
Width
40mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269.4, ROHS Compliant
