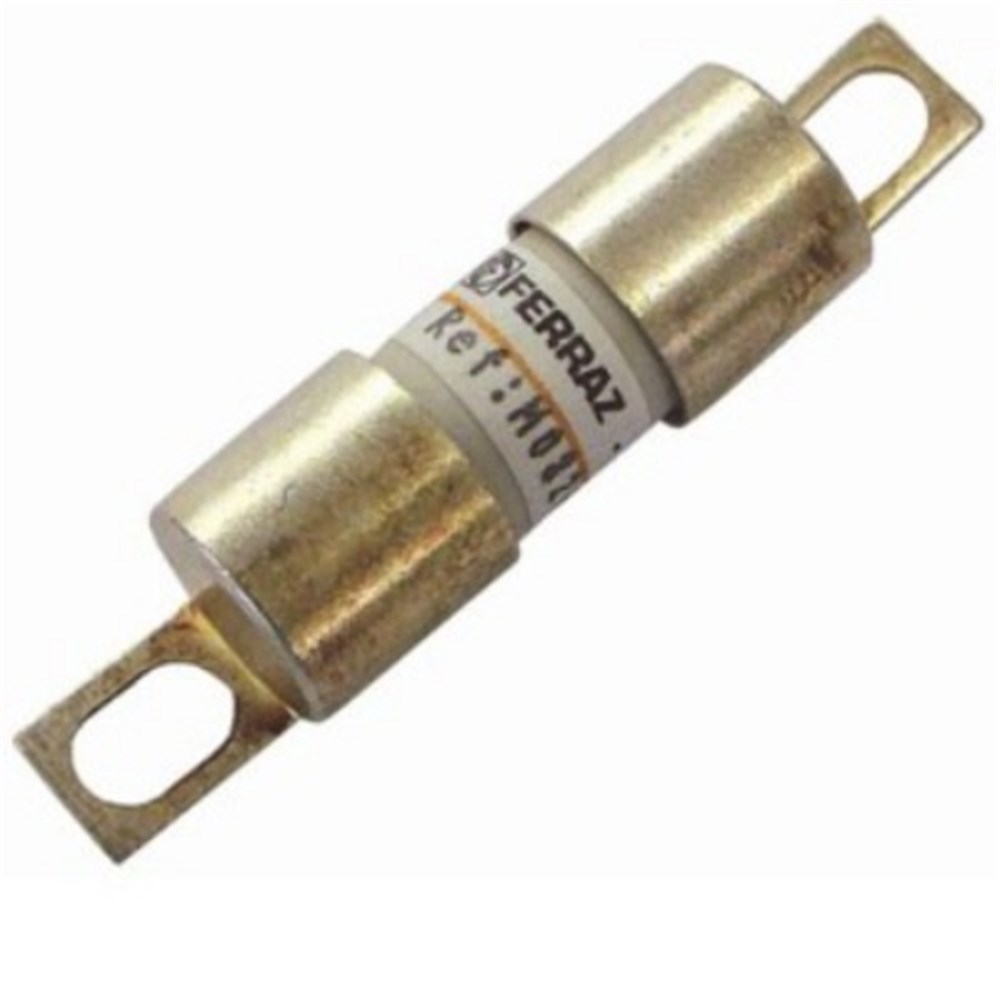

MERSEN FUSE LINK 32A 250V OFFSET TAG SINGLE BODY SEMICONDUCTOR N081984

Product Code: N081984

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed BS88 Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronic systems.

Electrical

Utilization Category
gR
Rated Current (In)
32A
Rated Voltage (Ur)
250V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Offset tag single body
Fixing Centres
39.4mm
Indicators
Without indicator
Material
Ceramic body, silver-plated contacts
Mounting
Bolted offset tag
Size Code
10 x 28
Connection/Termination
Offset tag blades

Dimensions & Physical Data

Depth
11.1mm
Length
45.6mm overall
Width
Ø 10.3mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1 & -4; BS88-4

Documents

IPD Product Catalogue V17
