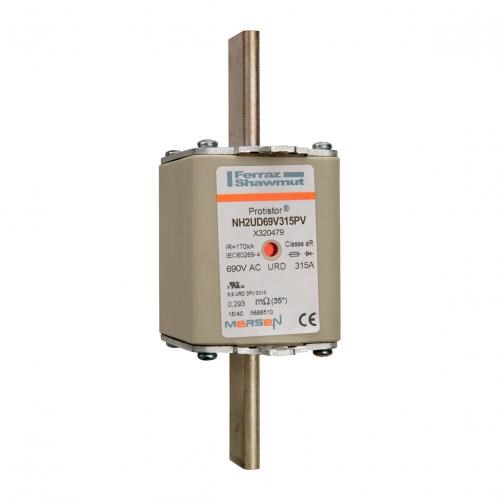

MERSEN FUSE LINK 315A NH2 DIN BLADE FOR SEMICONDUCTOR PROTECTION NHUD2-315/69 X320479

Product Code: X320479

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Series
aR
Application
Semiconductor protection

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
315A
Rated Frequency
50/60Hz
Speed Class
aR

Mechanical

Body Style
NH DIN body
Indicators
Striker
Material
Body: Ceramic, Contact: Silver plated copper
Size Code
NH2
Connection/Termination
DIN blade

Dimensions & Physical Data

Height
74mm
Length
150mm
Weight
0.62kg (Approx.)
Width
52mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; DIN 43620
