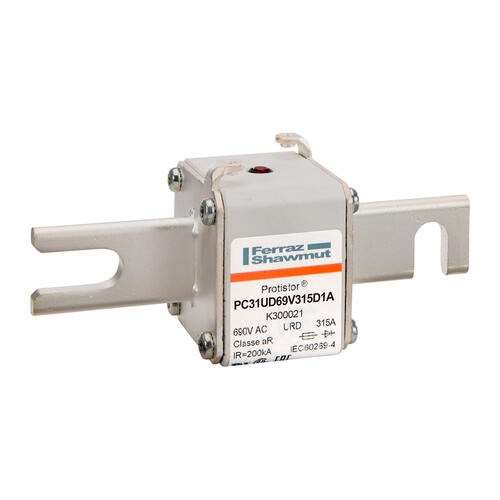

MERSEN FUSE LINK 315A 110MM FIXING FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V K300021

Product Code: K300021

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Protection of semiconductors: diodes, thyristors, IGBT devices, inverters, motor drives and UPS equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
315A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Fixing Centres
110mm
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts, non-magnetic hardware
Mounting
DIN 110 blades
Size Code
Size 31
Connection/Termination
DIN 110 blades

Dimensions & Physical Data

Depth
60mm
Height
56.5mm
Length
146mm
Weight
0.39kg (Approx.)
Width
51mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
