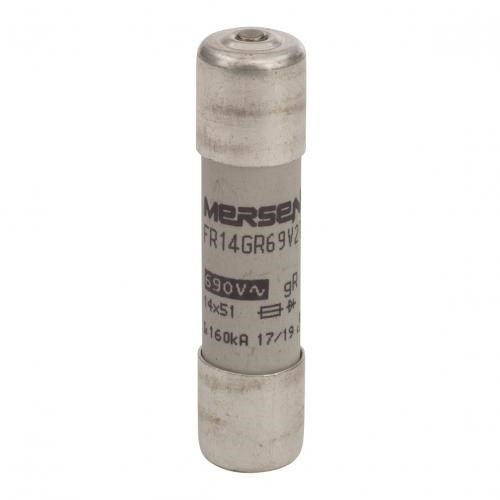

MERSEN FUSE LINK 2A 690V gR 14*51MM FOR SEMICONDUCTOR PROTECTION WITH TRIP INDICATOR 14F02 D1017178

Product Code: D1017178

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Cylindrical Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors; use in CMS101 / CMS141 holders as applicable

Electrical

Utilization Category
gR
Breaking Capacity
200 kA AC
Rated Current (In)
0.083333
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
690 V AC IEC / 700 V AC UL
Speed Class
Ultra-fast acting

Mechanical

Body Style
Cylindrical / ferrule
Indicators
with trip indicator
Material
Ceramic body; silver-plated contacts
Mounting
Fuse holder / clips
Size Code
14 x 51
Connection/Termination
Ferrule end caps

Dimensions & Physical Data

Length
51 mm
Weight
0.025 kg
Width
Ø 14 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; UL Recognized

Documents

IPD Product Catalogue V17
