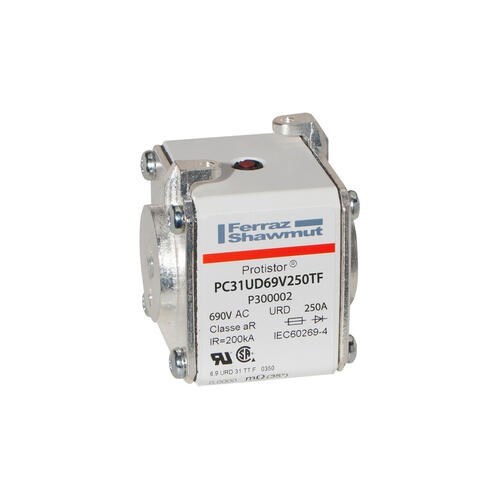

MERSEN FUSE LINK 250A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 31, 660V P300002

Product Code: P300002

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Semiconductor Fuse
Brand
Mersen
Application
Protection of power semiconductors: diodes, thyristors, IGBT and MOSFET devices

Electrical

Utilization Category
aR
Breaking Capacity
200kA
Rated Current (In)
250A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
690V AC
Speed Class
Ultra-fast acting

Mechanical

Body Style
Square body
Indicators
with striker
Material
Silver-plated contacts; non-magnetic
Mounting
Bolted / end-contact mounting
Size Code
Body size 31
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Weight
0.38kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-1; IEC 60269-4; UL recognized file E76491

Documents

IPD Product Catalogue V17
