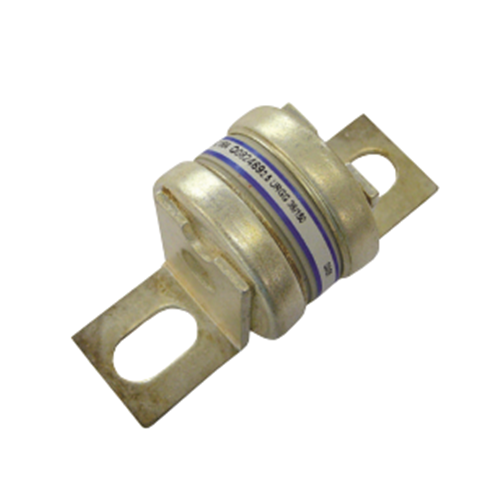

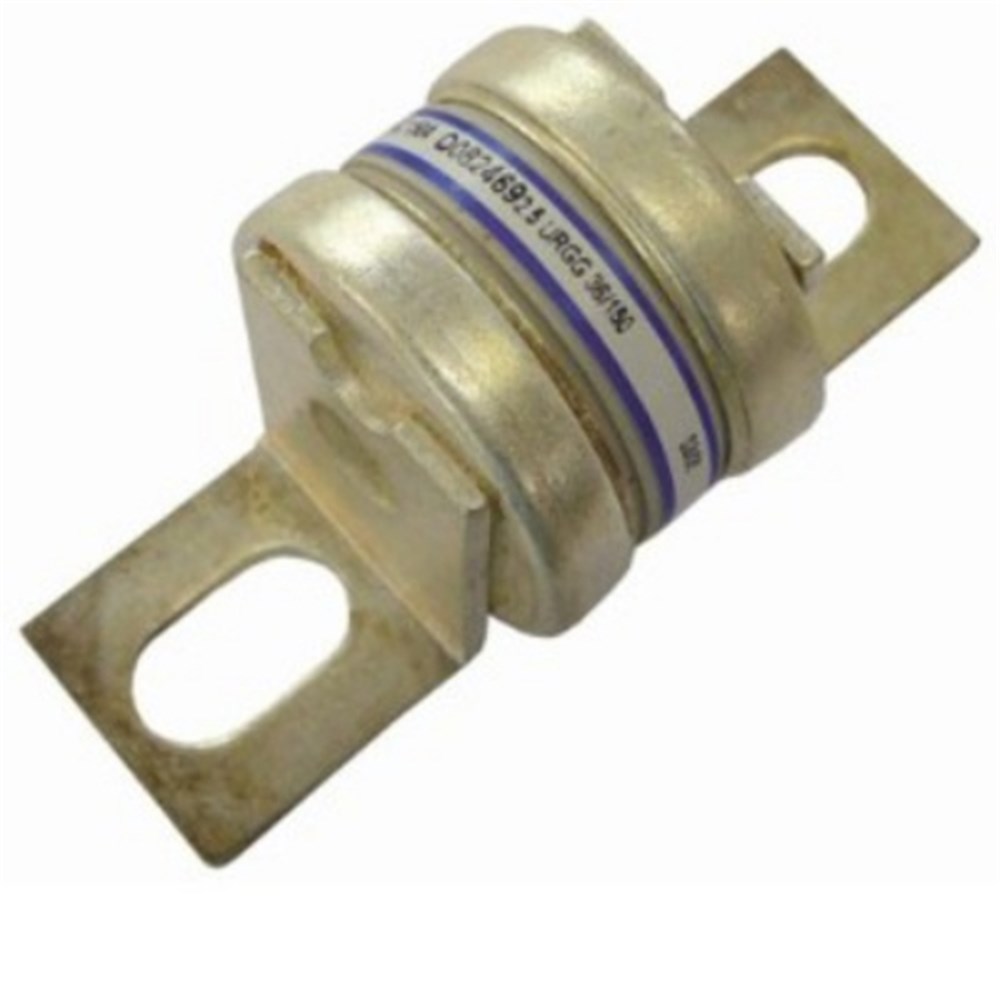

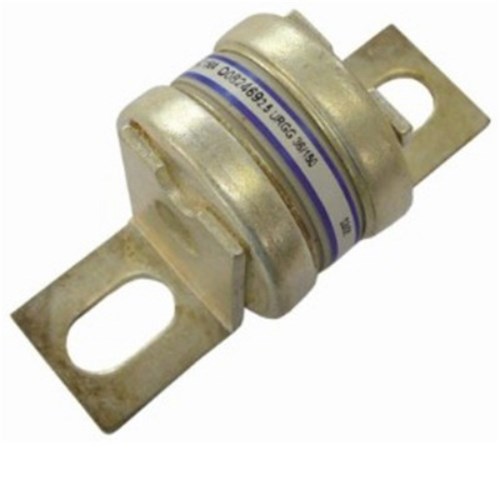

MERSEN FUSE LINK 250A 250V OFFSET TAG SINGLE BODY SEMICONDUCTOR N082467

Product Code: N082467

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed BS88 Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronic systems.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
250A
Rated Voltage (Ur)
250V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Offset tag single body
Indicators
Without indicator
Material
Ceramic body, silver-plated contacts
Mounting
Bolted tags
Size Code
36 x 27
Connection/Termination
Offset tag blades

Dimensions & Physical Data

Length
27mm
Width
Ø 36mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4; BS88
