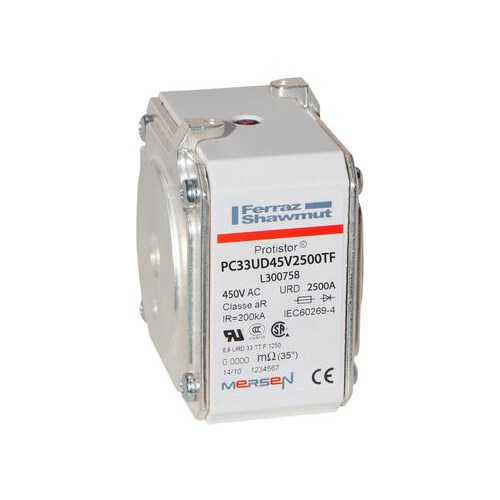

MERSEN FUSE LINK 2500A END CONTACT FOR SEMICONDUCTOR PROTECTION BODY SIZE 33, 450V L300758

Product Code: L300758

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronics: drives, converters, inverters, UPS and rectifier equipment.

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
2500A
Rated Voltage (Ur)
450V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Square body
Indicators
Striker
Material
Ceramic body, silver-plated copper contacts
Mounting
Flush ends metric threads
Size Code
Size 33
Connection/Termination
Flush ends metric threads

Dimensions & Physical Data

Depth
78.5mm
Length
50.6mm
Weight
0.81kg (Approx.)
Width
73mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4
