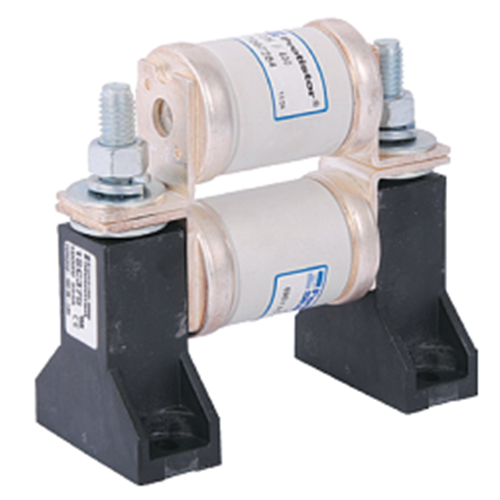

MERSEN FUSE LINK 235A 690V CENTRE TAG DUAL BODY SEMICONDUCTOR PROTECTION J097275

Product Code: J097275

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
High - Speed BS88 Fuse - Link
Brand
Mersen
Application
Semiconductor protection for power electronics

Electrical

Utilization Category
aR
Breaking Capacity
200kA AC
Rated Current (In)
235A
Rated Voltage (Ur)
690V AC
Speed Class
Ultra fast acting

Mechanical

Body Style
Centre tag dual body
Indicators
Without indicator
Material
Ceramic body, silver-plated contacts
Mounting
Centre tag / bolted
Size Code
2 x 36 x 55
Connection/Termination
Centre tag blades

Dimensions & Physical Data

Height
36mm
Length
55mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269-4

Documents

IPD Product Catalogue V17
